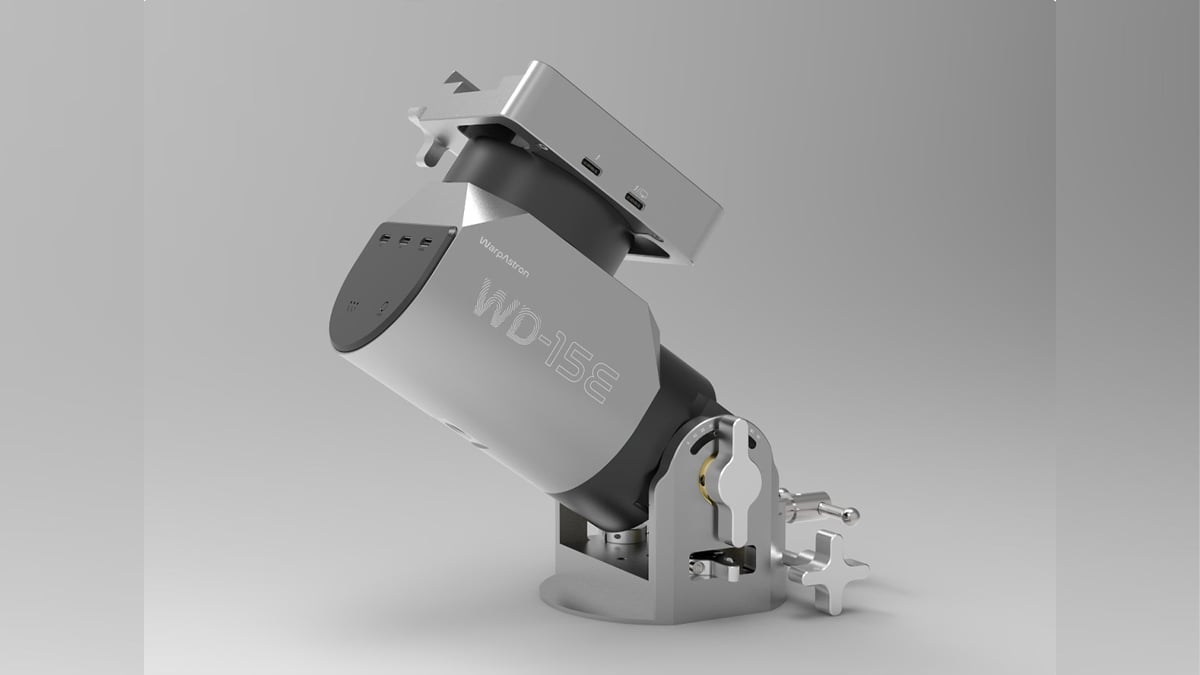

WarpAstron WD15E Harmonic Drive Mount: A New Servo-Driven Platform

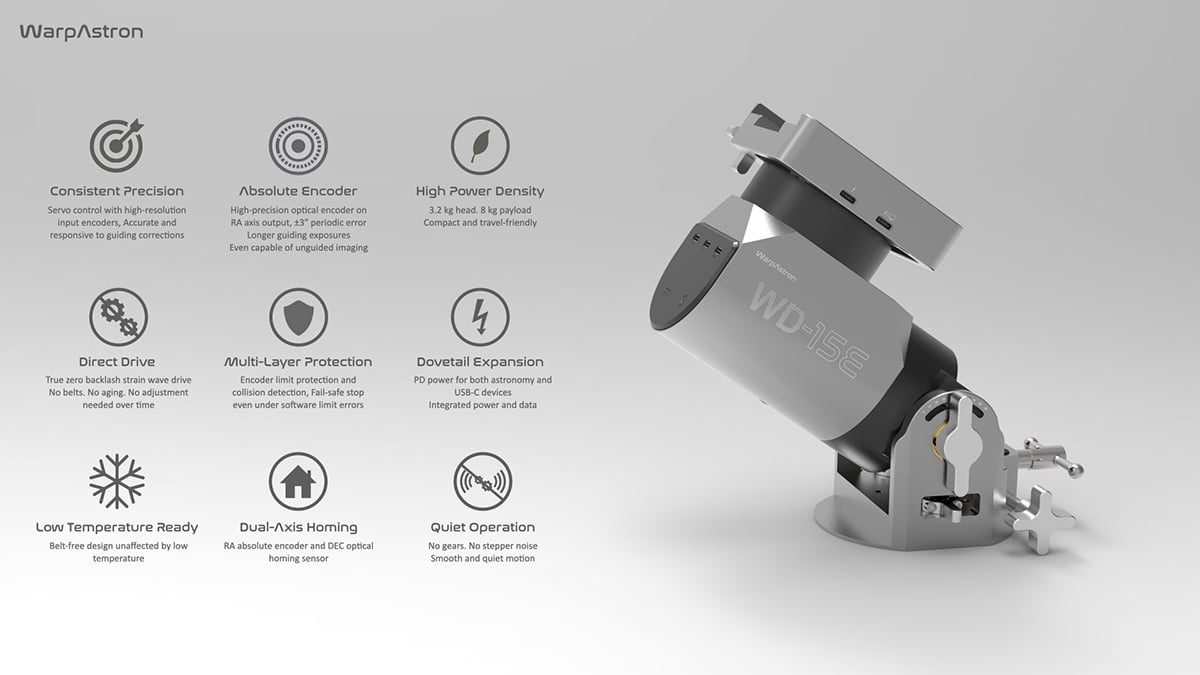

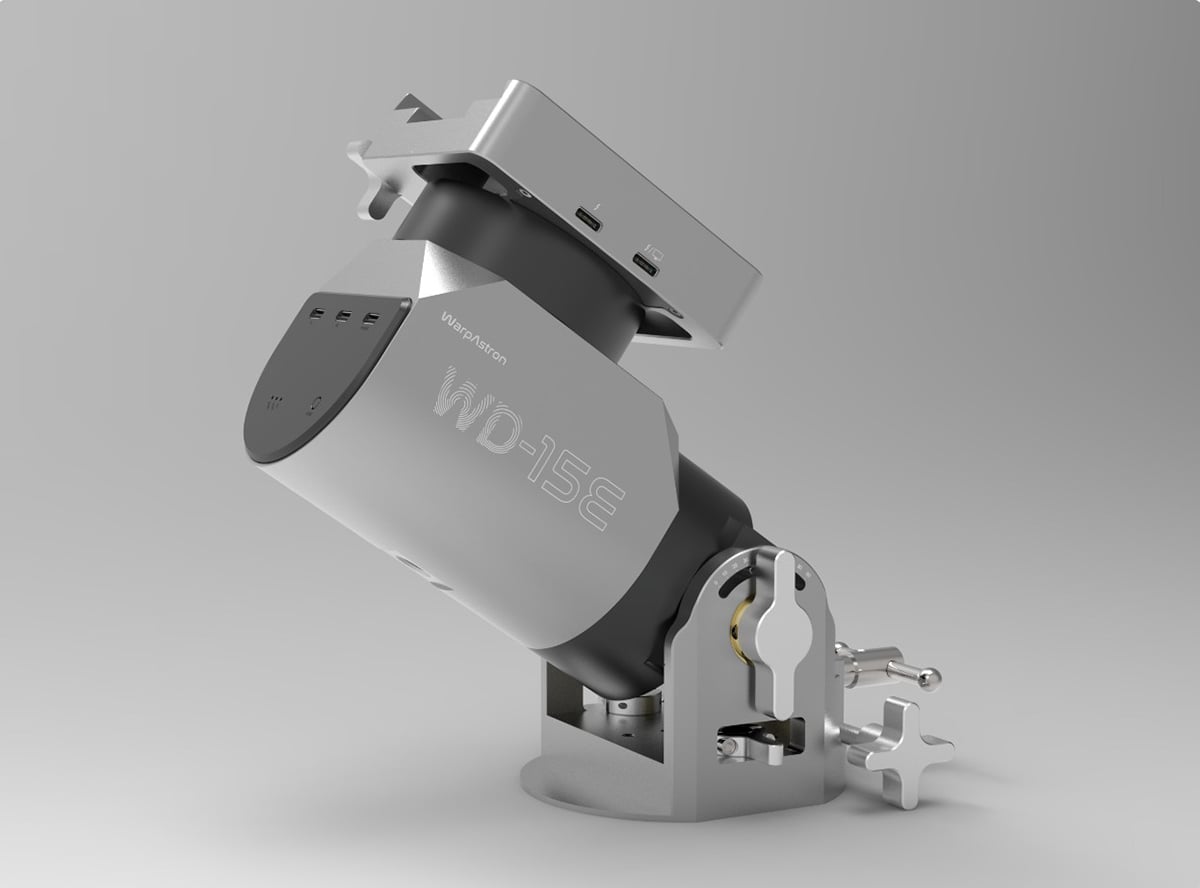

Astrophotography mounts are increasingly relying on strain-wave transmission systems combined with servo motor control to achieve high tracking precision in a compact mechanical structures. The WarpAstron WD15E harmonic drive mount has entered this evolving landscape as a compact equatorial tracking system that includes company’s established WARPDRIVE architecture. It brings direct-drive servo motion, encoder-assisted positioning, and dual-mode operating capability into a portable format intended for field-based deep-sky imaging.

WarpAstron designed the WD15E as part of a harmonic-drive mount family. The mount extends the engineering direction already established by the WD-17 and WD-20 systems. At the same time, it introduces a lighter platform suited for compact refractors and travel imaging rigs.

Harmonic drive architecture and servo motor control

The WD15E uses strain-wave reduction combined with brushless DC servo motors instead of the worm-gear transmission used in traditional equatorial mounts. This configuration changes how the mount behaves during slewing and guiding operations. It also alters how torque is delivered to the telescope axes.

In a conventional mount, stepper motors drive worm gears through belt systems or intermediate gear stages. These components introduce mechanical compliance and backlash. Although worm-gear mounts achieve excellent performance, their transmission structure still requires periodic adjustment and careful balancing.

The WARPDRIVE platform connects servo motors directly to harmonic reducers. This arrangement removes belts from the transmission chain. As a result, the axes respond more quickly to motion commands. The reduction stage remains compact, yet it provides high torque capacity relative to its size.

Servo motors also behave differently from stepper motors during tracking corrections. They maintain torque over a wider speed range and respond smoothly to encoder feedback signals. This improves guiding stability during long-exposure imaging sessions. At the same time, it reduces the vibration signatures sometimes associated with stepper-driven systems.

Positioning Within the WARPDRIVE Mount Series

WarpAstron developed the WARPDRIVE series as a modular family of harmonic drive mounts. Each model addresses a different payload class while retaining the same transmission concept and control structure. The WD15E sits naturally within this progression.

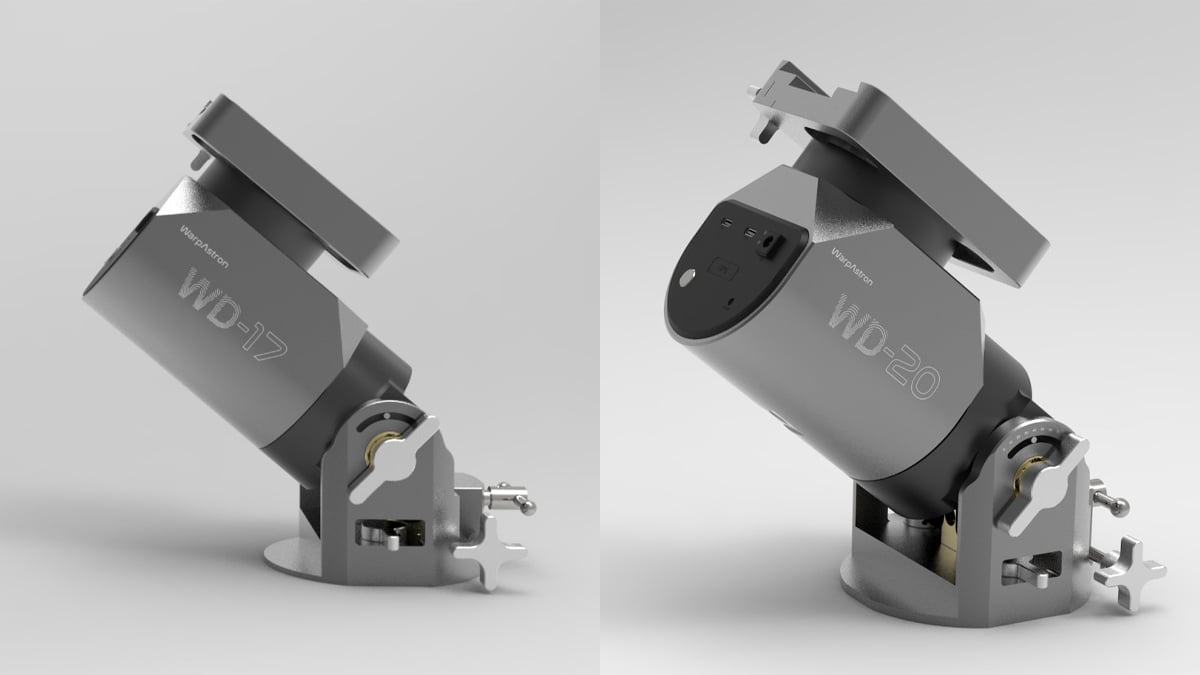

Earlier mounts such as the WD-17 established the company’s portable imaging platform. The WD-20 extended that architecture into heavier payload territory while preserving a compact mechanical footprint. Both mounts showed how servo-driven strain-wave reducers could replace conventional equatorial transmission systems without increasing structural size.

The WD15E continues this direction by focusing on smaller imaging telescopes. It supports the growing class of portable refractor-based astrophotography systems that now dominate field imaging workflows. These systems often include short focal-length optics, compact cameras, and lightweight control computers. Mounts designed for such equipment must remain transportable while maintaining stable tracking performance.

Designed for field deployment

Transportability has become an important requirement in astrophotography mount design. Observers frequently travel to dark-sky locations where portability influences equipment selection as strongly as tracking accuracy. The WD15E reflects this shift in observing practice.

Strain-wave reducers provide high torque density inside compact housings. This allows harmonic mounts to support imaging payloads without the mass normally associated with worm-gear equatorial systems. As a result, the mount head remains easier to transport and faster to deploy in field conditions.

WarpAstron demonstrated this advantage in earlier WARPDRIVE models. Those mounts achieved unusually high payload capacity relative to their structural weight. The WD15E follows the same strategy within a smaller payload class. Equally important, the strain-wave transmission reduces dependence on large counterweight systems. In many portable configurations, this helps decrease the total transport load without compromising stability during tracking.

Encoder-supported motion and tracking stability

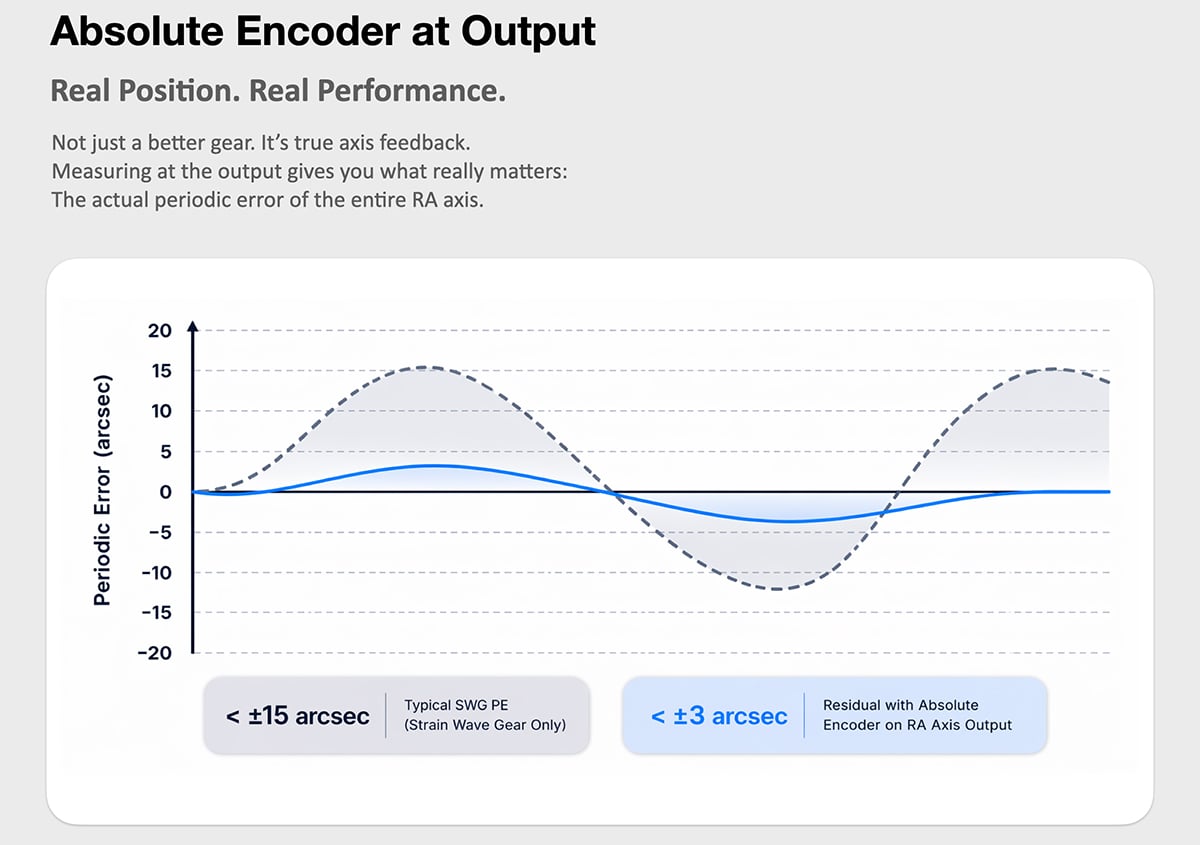

Encoders monitor axis position continuously and provide feedback to the servo control system. This feedback allows the mount to correct motion errors rapidly and maintain accurate tracking alignment during long exposures. As a result, the axes respond smoothly to guiding inputs from external software.

Electronic homing capability forms another important part of this system. The mount can return to reference coordinates automatically after power interruption or restart. This improves reliability during repeated field sessions and simplifies alignment procedures at remote sites.

The encoder-supported architecture also helps maintain consistent pointing behaviour between observing sessions. When combined with modern plate-solving workflows, this improves the efficiency of automated imaging sequences.

Dual-mode operation for imaging and visual use

The ability to operate in both equatorial and alt-azimuth configurations adds flexibility to harmonic drive mounts. WarpAstron incorporated this capability across the WARPDRIVE series, and the WD15E continues this.

Equatorial mode supports long-exposure astrophotography by compensating for Earth’s rotation through polar alignment. This configuration remains essential for deep-sky imaging with tracking exposures lasting several minutes.

Alt-azimuth mode serves a different purpose. It allows observers to use the mount for visual observing sessions without performing polar alignment procedures. This mode simplifies operation during outreach activities or quick observing opportunities.

Altitude adjustment mechanisms across the WARPDRIVE platform support a wide latitude range. Observers can therefore deploy the mount in different geographic regions without structural modification.

Price and availability: WarpAstron WD15E

The WarpAstron WD15E harmonic drive mount is priced at $2,399. It is currently available for pre-ordering via the official website. The company expects to ship the first batch in June 2026.

Clear skies!

---
