ZWO AM3N Launched: A Compact Mount with Big Ambitions

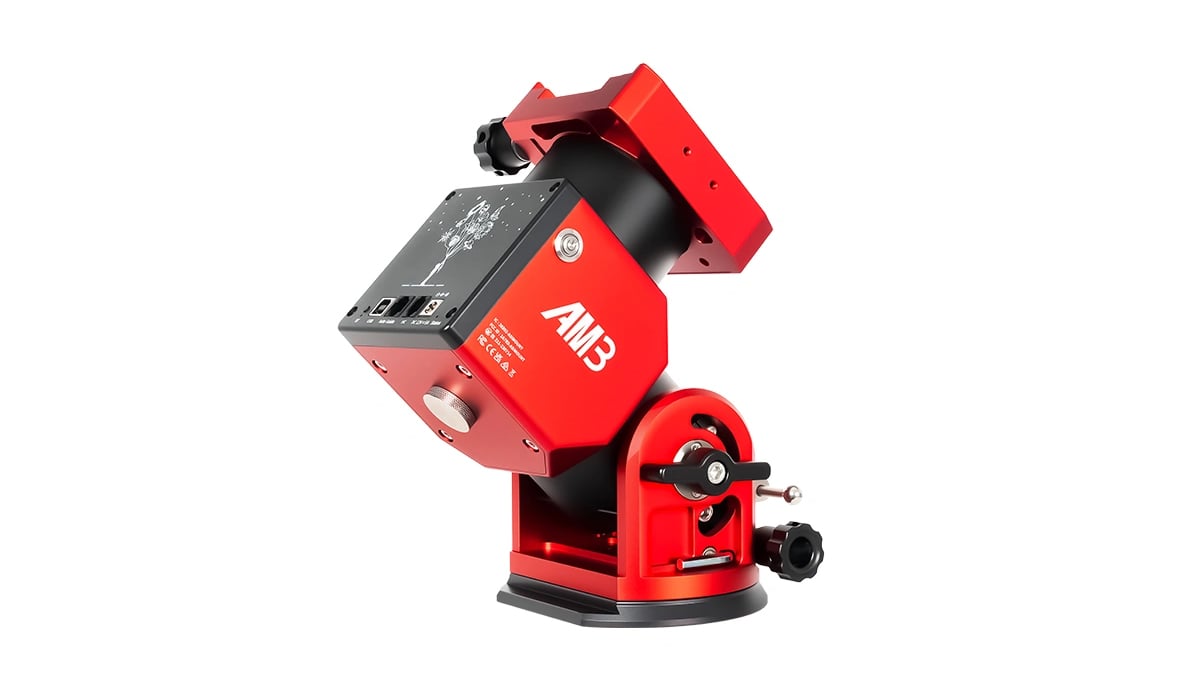

ZWO has introduced the AM3N Harmonic Equatorial Mount as the successor to its popular AM3. At first glance, the new model looks like a familiar travel-friendly mount. It is small, light, and designed to be carried into the field with minimal effort. But under the surface, ZWO has made a series of refinements that aim to make life easier for astrophotographers who value portability without giving up precision. The AM3N continues ZWO’s approach of bringing strain wave, or harmonic, drive technology into compact mounts. This drive system, paired with a synchronous belt, delivers a high reduction ratio of 300:1. That translates to smooth motion with little backlash, stable tracking, and low periodic error.

The mechanics

Harmonic drives are not new to astronomy, but they are becoming more common in recent years. They use a flexing wave generator to transfer torque, allowing compact housings to deliver strong mechanical performance. In mounts like the AM3N, the result is reduced backlash compared to traditional worm gears, which helps guiding systems make more precise corrections.

ZWO specifies a periodic error of ±15 arcseconds, with a cycle duration of about 288 seconds. Those figures are good for a mount in this size class. While guiding is still required for long exposures, the low periodic error provides a stable baseline. For users imaging with short to medium focal lengths, the AM3N’s mechanical behavior should be more than sufficient for consistent star shapes across the frame.

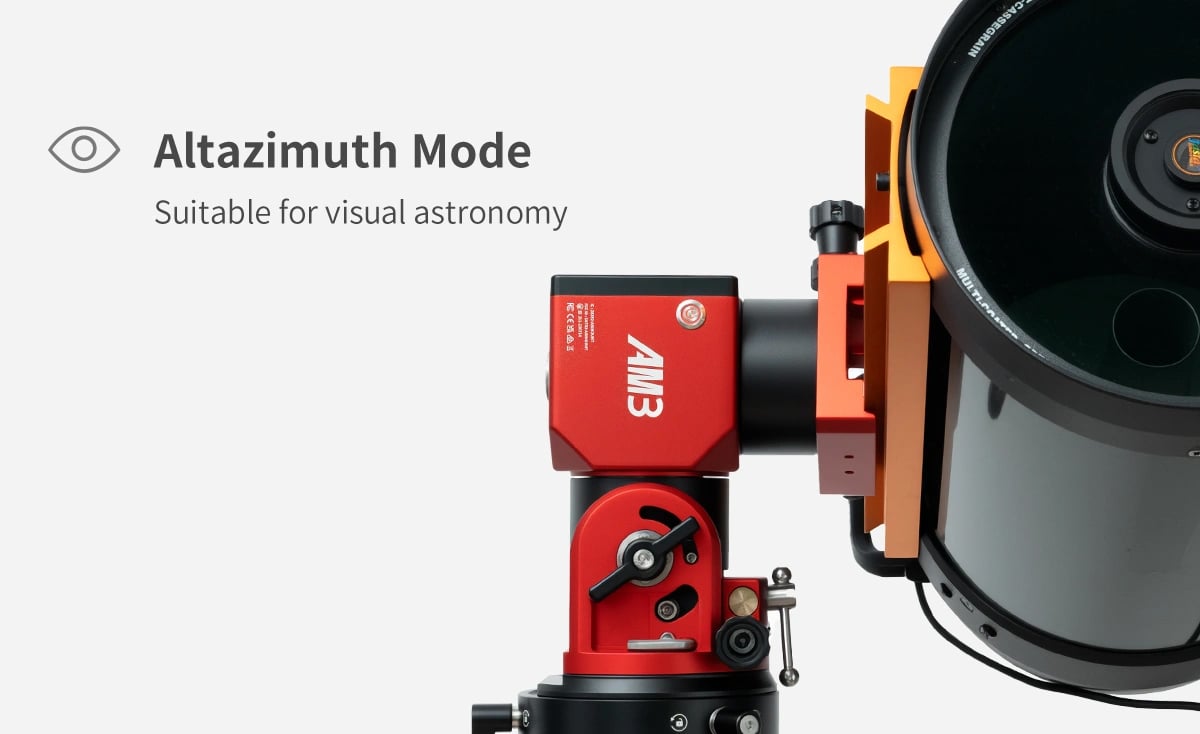

The mount supports both equatorial and alt-azimuth modes. Switching between them is simple, using either the SkyAtlas app or the hand controller. This makes the mount versatile; equatorial mode is suited for long-exposure astrophotography, while alt-azimuth mode is convenient for visual observing or quick outreach sessions.

Design updates

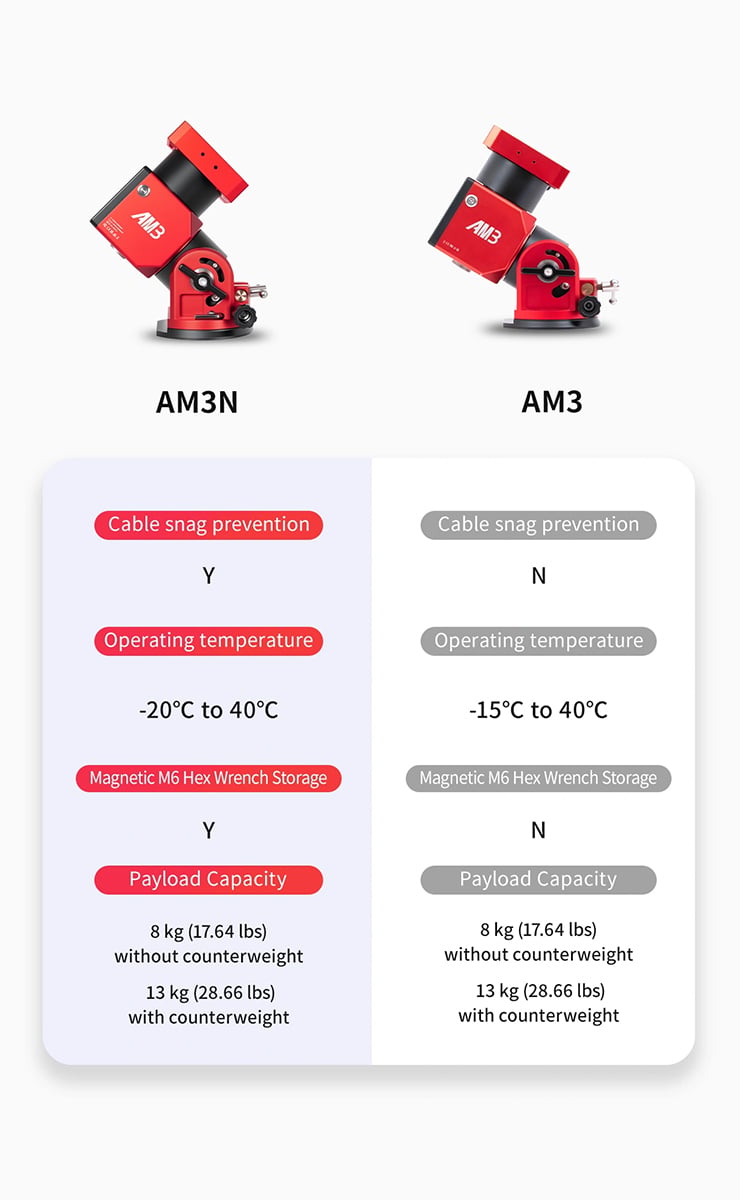

Where the AM3N differs most from the earlier AM3 is in its ergonomics and cable management. ZWO has added a Type-C and a 12V DC power port directly to the dovetail saddle. This allows users to power cameras or accessories without running long cables around the mount. For anyone who has tripped over wires in the dark or lost precious imaging time to tangles, this is a welcome upgrade.

The mount also features a magnetic hex key stored in the body, another small but practical detail. Together with improved cable routing and a cleaner design, these updates reduce clutter and speed up setup. In the field, that can be the difference between a frustrating night and a smooth session.

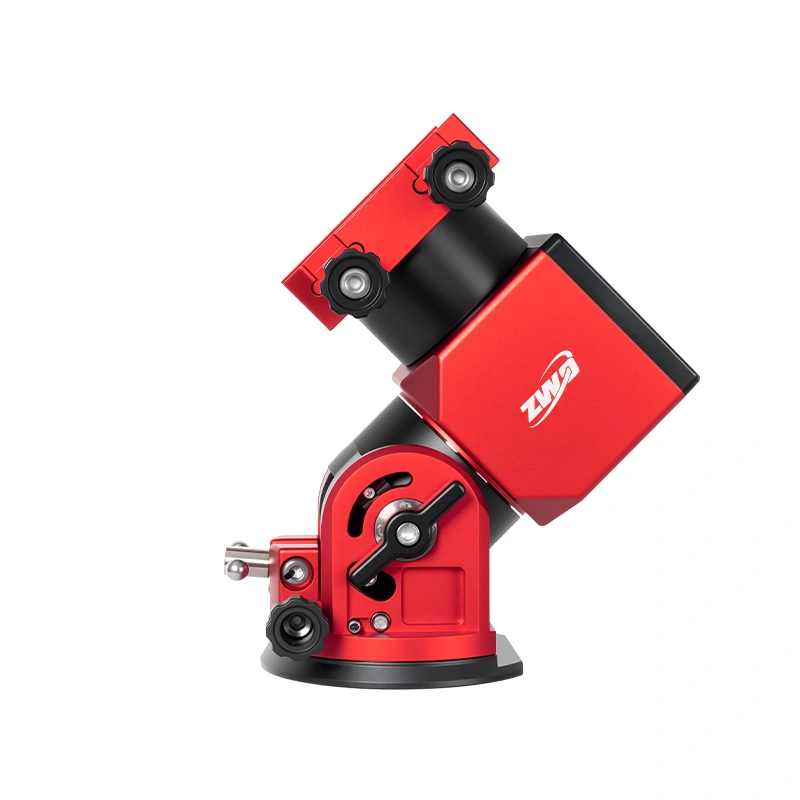

The saddle accepts both Vixen and Losmandy plates, giving users flexibility with their existing gear. Altitude adjustment ranges from 0° to 90°, while azimuth adjustment covers ±6°. The counterweight shaft uses a standard M12 thread. These design decisions ensure compatibility with a wide range of accessories already on the market.

Portability and payload capacity

The AM3N weighs about 4.1 kilograms, which makes it highly portable. Despite its light weight, ZWO rates the mount for an 8-kilogram payload without a counterweight, and up to 13 kilograms with one. That capacity makes it suitable for refractors in the 80-100 mm range, small Schmidt-Cassegrain telescopes, or camera-and-lens rigs.

For many astrophotographers, this payload balance is ideal. It supports serious imaging gear while still keeping the mount itself small enough to travel. The ability to avoid counterweights for lighter setups is particularly useful when traveling by air or hiking into remote locations. When heavier gear is needed, adding a counterweight ensures stable performance.

Power and control

ZWO specifies a 12V input for the AM3N. If the voltage drops below about 10.8V, the mount will sound a warning beep. This makes reliable power sources and quality cables important, especially during long sessions in the field. Many users will pair the mount with lithium battery packs to ensure stable voltage throughout the night.

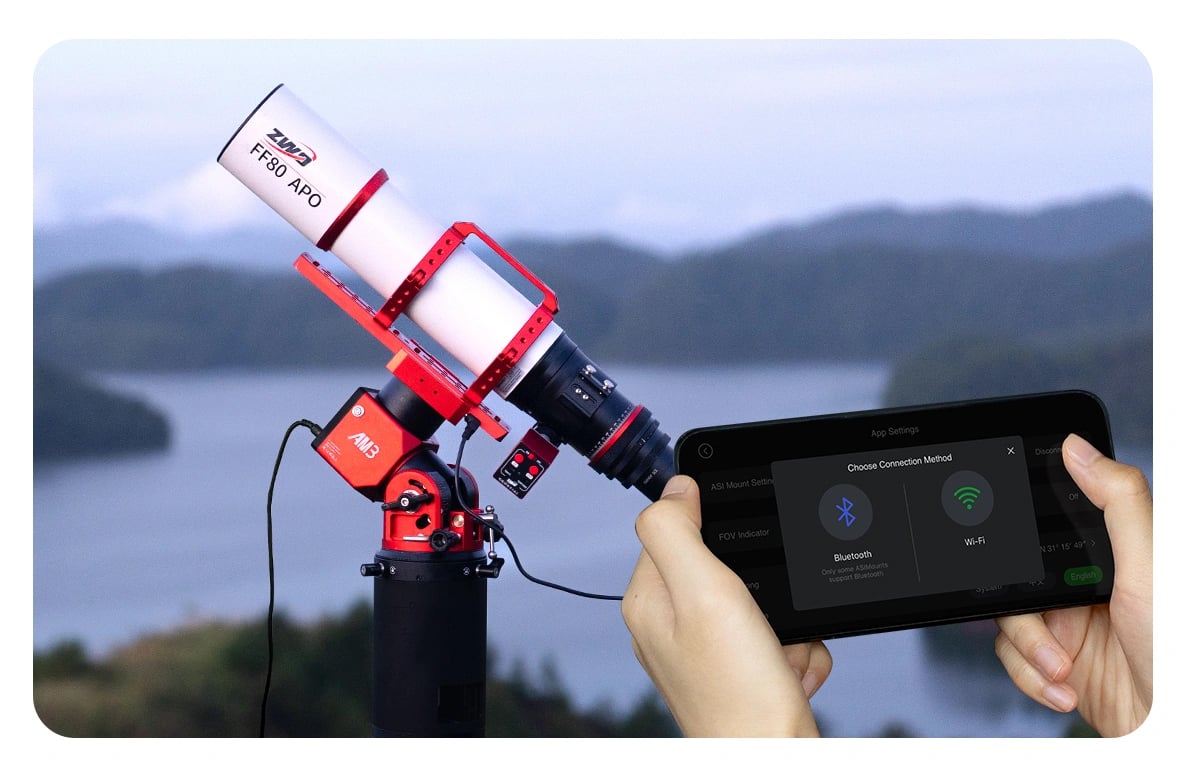

Control options are extensive. The mount includes built-in Bluetooth, allowing direct control via smartphone. Wi-Fi connectivity is available through the hand controller. The AM3N integrates smoothly with ZWO’s ASIAIR system, but it also supports ASCOM and INDI standards for compatibility with third-party software. This means it can fit easily into a wide range of existing setups, from fully ZWO ecosystems to mixed-brand rigs.

Price and availability

The ZWO AM3N is priced at $1,499 and is available to pre-order via the official ZWO website.

The AM3N is aimed squarely at astrophotographers and observers who value portability. For someone with a compact refractor or mirrorless camera system, the mount offers a good blend of precision and convenience. It is particularly well-suited for travel, whether that means driving to a dark site or packing equipment for a flight. It is not, however, designed for very heavy payloads. Users with large reflectors or heavy imaging trains should look to larger mounts, such as ZWO’s AM5, which is built for higher torque and heavier loads. The AM3N’s strength lies in its balance: light enough to carry anywhere, strong enough to handle most small to medium setups.

Clear skies!

---
