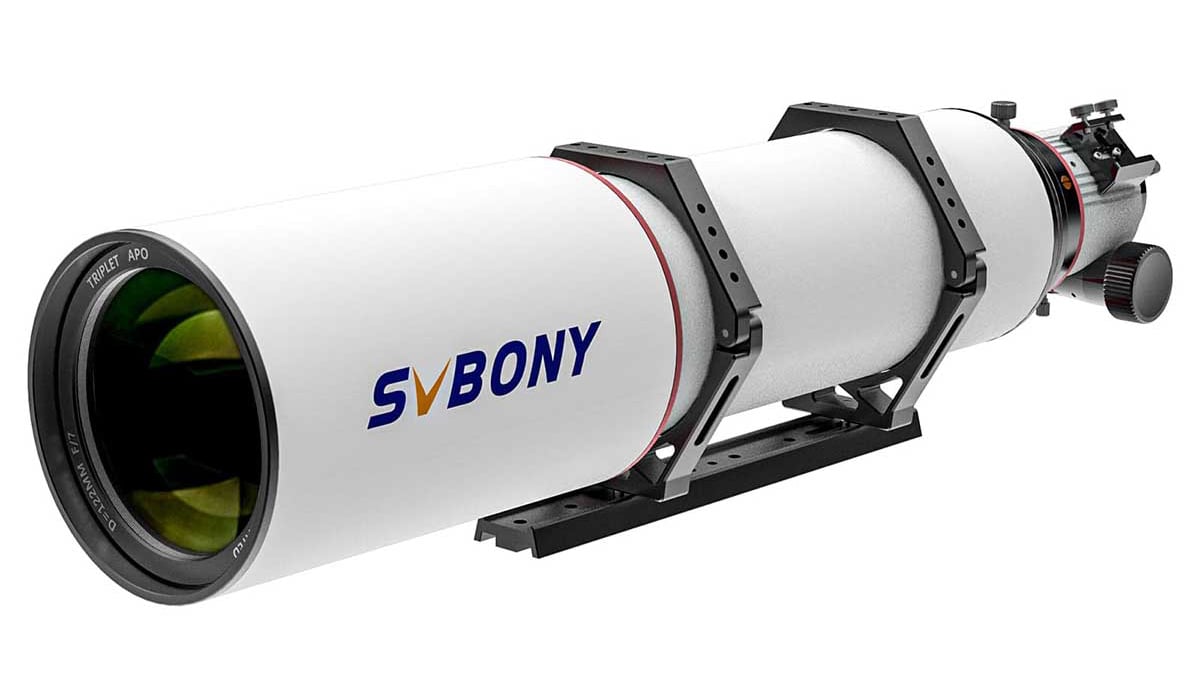

Svbony SV550 122mm APO Refractor: Large Aperture on a Budget

Astrophotography demands precision, clarity, and reliability. The Svbony SV550 122mm APO refractor delivers all that and more. This telescope is designed for serious imagers and visual astronomers. It offers excellent optics, a solid build, and smart engineering. Svbony has created a product that competes well in the mid-range market.

Optical design: Triplet APO with FPL-51 ED glass

The SV550 features a 122mm triplet apochromatic lens. This means three lens elements work together to reduce chromatic aberration. One of these is made from FPL-51 extra-low dispersion (ED) glass. This special glass minimizes color fringing and ensures sharp, true-to-color images. The focal length is 854mm. That gives it a focal ratio of f/7. This balance makes the scope ideal for both deep sky imaging and some planetary work.

Focuser: Precision and stability

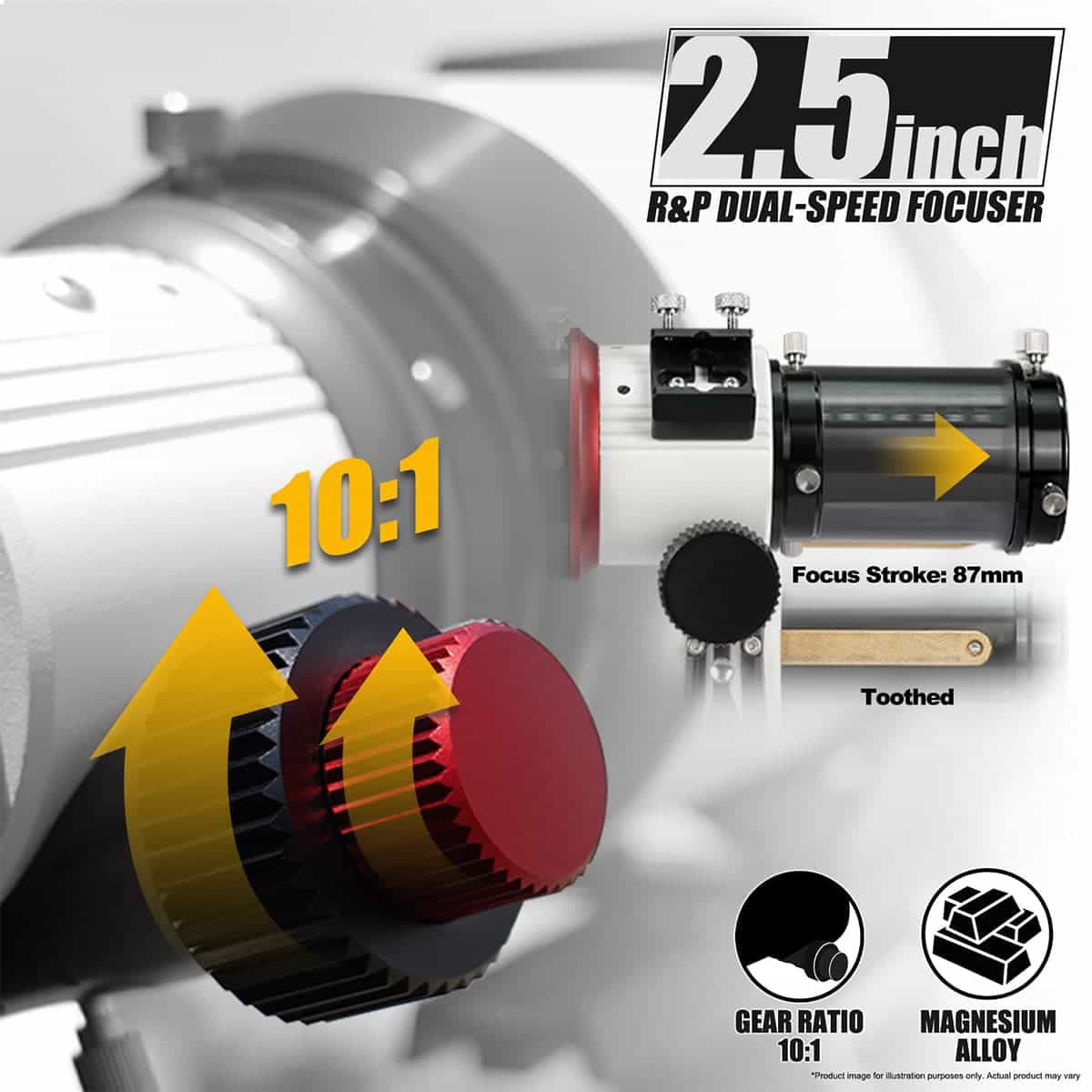

The SV550 uses a 2.5-inch rack-and-pinion focuser. It’s fully rotatable and dual-speed. The coarse and 10:1 fine controls help you achieve perfect focus. This focuser can handle heavy imaging gear. It includes tension adjustment screws and a locking mechanism.

Build quality: Sturdy and travel-ready

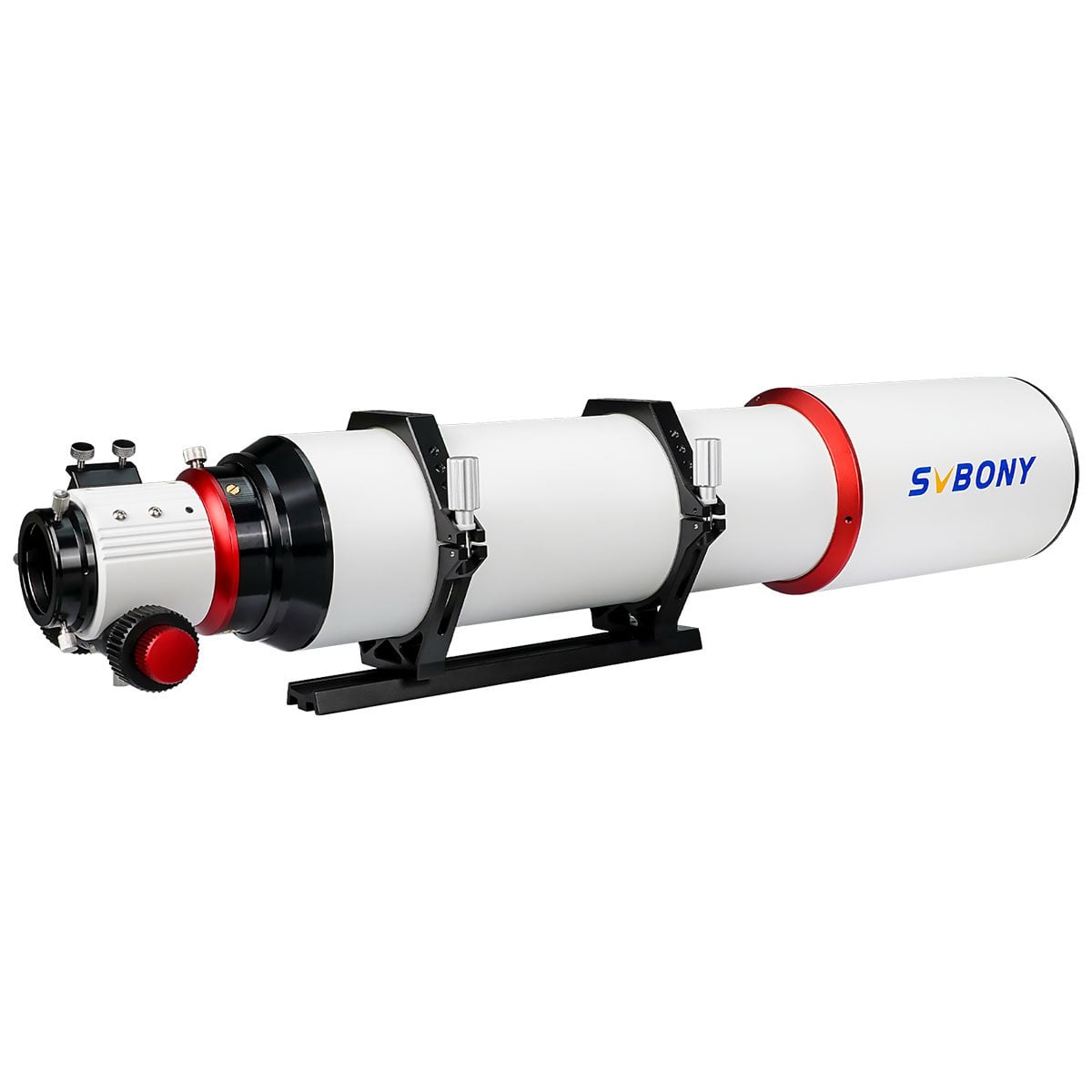

The tube is built from high-quality CNC-machined aluminum. It is both durable and elegant. The design includes a retractable dew shield. This helps reduce moisture on the front lens and keeps stray light out. The OTA (optical tube assembly) weighs around 6.44 kg. That’s manageable for fieldwork. The telescope comes with a pair of CNC tube rings. These rings include multiple mounting holes for guidescopes and accessories. A 300mm Vixen-style dovetail plate is also included. Svbony ships the telescope in a padded, soft carrying case. This case protects the scope during travel. It’s not a hard case, but it still offers decent security.

Accessories and optional add-ons

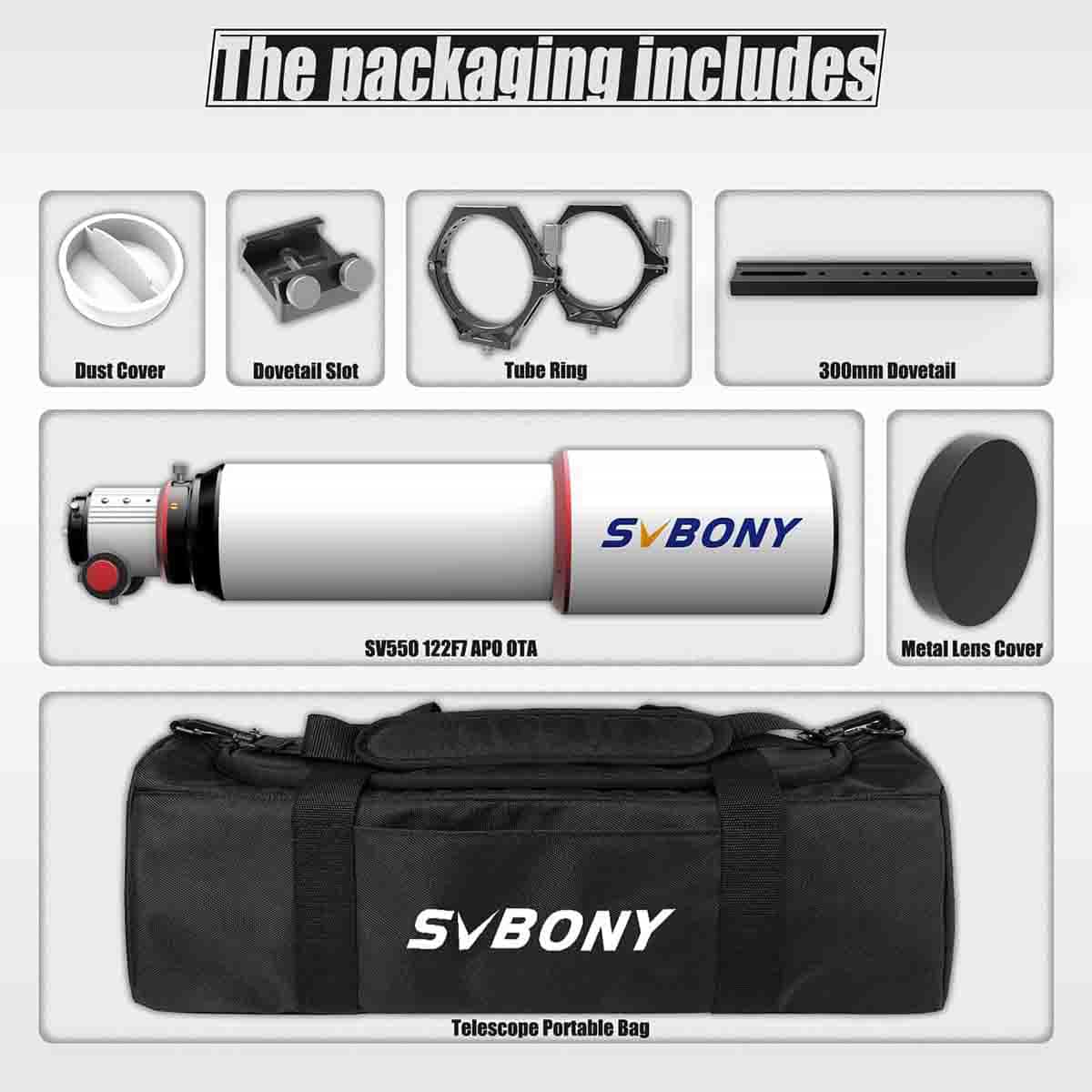

The base package includes the optical tube, tube rings, dovetail, and soft case. It does not come with a finder scope or a diagonal. These must be purchased separately.

Svbony also offers an optional 0.8× field flattener/reducer (included in the bundle set). This is a valuable addition for astrophotographers. It brings the effective focal ratio down to f/5.6. It also improves star sharpness across the entire frame, especially for full-frame sensors. For visual observers, a 2-inch diagonal and quality eyepieces are recommended.

Key specifications

Here is a glance at the key specifications of the telescope:

Aperture	122 mm
Focal Length	854 mm
Focal Ratio	f/7
Optical Design	Air-spaced triplet apochromatic refractor
ED Glass Type	FPL-51 (central lens element)
Focuser	2.5-inch rack-and-pinion, Dual-speed (10:1 fine focus)
Tube Length	640 mm (retracted), 730 mm (extended)
Tube Outer Diameter	140 mm
Net Weight (OTA only)	6.44 kg
With Rings and Dovetail	~7.5 kg

Use cases: Who is it for?

This telescope is ideal for intermediate to advanced astrophotographers. Beginners with a strong interest and the right mount can also benefit. It is well-suited for:

• Deep-sky imaging
• Planetary imaging
• Visual observation of the Moon and bright objects
• Travel setups with equatorial mounts

The SV550 is built for astrophotography. This scope excels with deep-sky objects. Nebulae, galaxies, and star clusters appear bright and detailed. Paired with a cooled astro camera and autoguiding, the SV550 becomes a powerful imaging system.

While the SV550 is clearly aimed at imagers, it’s also a fine visual instrument. The 122mm aperture gathers ample light. It works well for observing the Moon, planets, and bright deep-sky objects. A quality diagonal and eyepieces will help you get the best out of it.

Price and availability

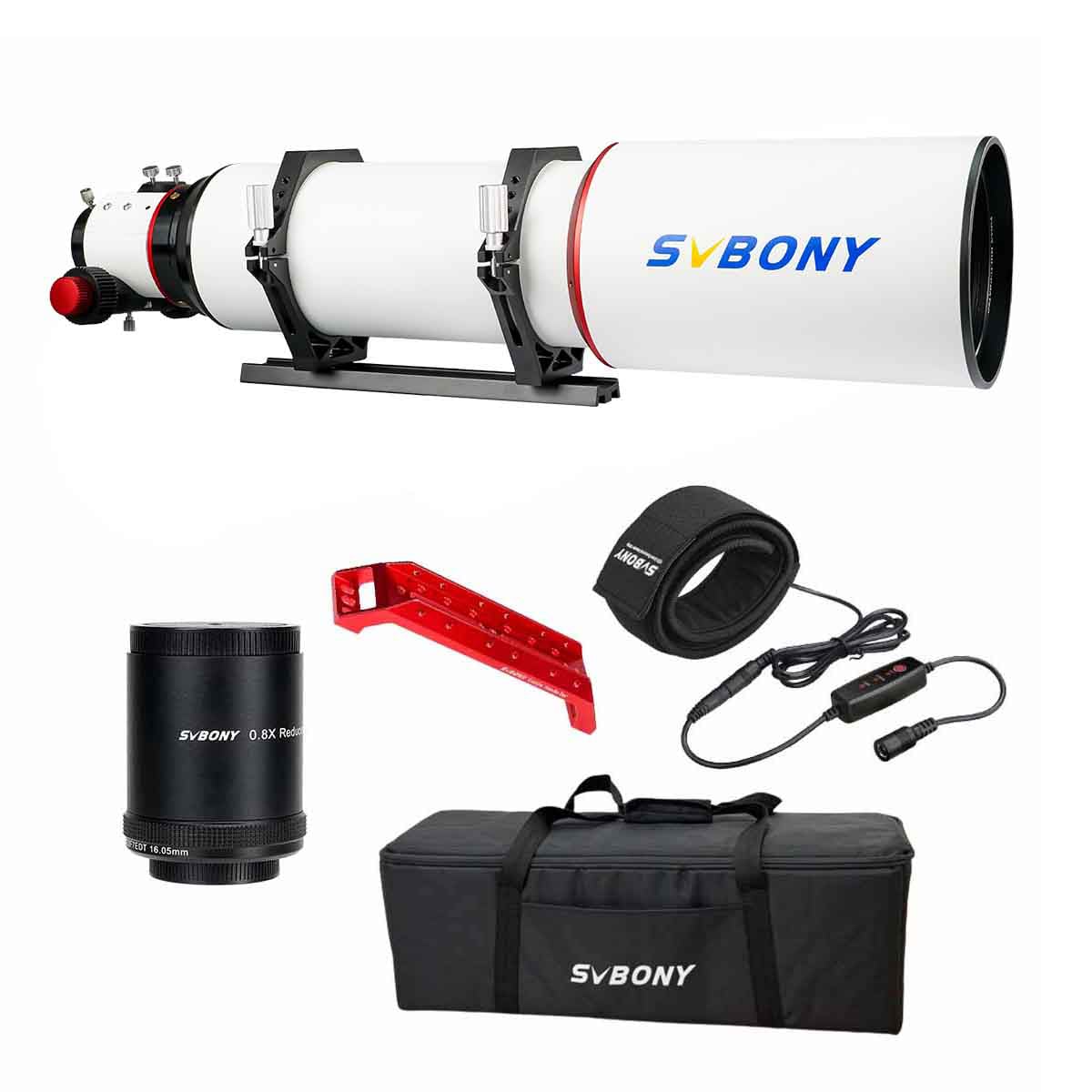

The telescope is available through Svbony’s official website and several major resellers. The OTA is priced at $1,429. The bundle that includes the OTA, a handlebar, a 0.8x reducer, and a dew heater is priced at $1,459.

The Svbony SV550 122mm APO refractor is a well-engineered scope. It delivers sharp, color-accurate images. The build quality is excellent. It offers serious performance for a price that’s accessible to many. Whether you’re an experienced imager or a motivated beginner, the SV550 is worth considering. It stands out in the crowded refractor market. You get a lot of aperture for your money. With its triplet optics, robust focuser, and astrophotography-friendly design, it’s a powerful tool. It supports serious imaging and rewarding visual observation.

Clear skies!

---
