Adding Real TTL Exposure meter To A Canon P Rangefinder

Apr 18, 2015 by Udi Tirosh 2 Comments

  • Share
  • Tweet
  • Flipboard
  • WhatsApp

canon-p-ttl-meter-06

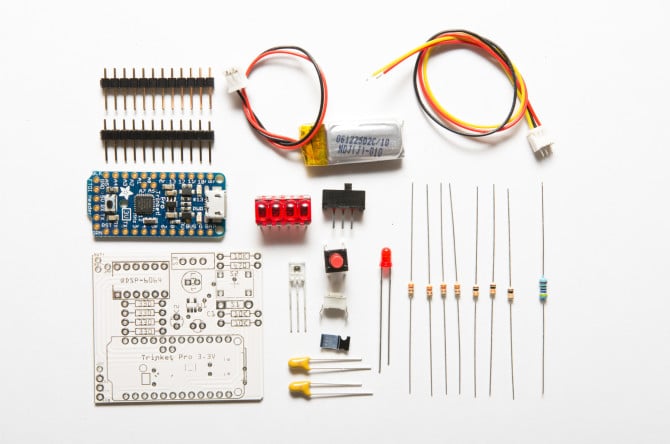

Yup, you heard right, true TTL on a (1959) Canon P Rangefinder. TTL stands for Through The Lens, which would be kinda impossible for that manual-focus,  manual-exposure camera. Yet, Kevin Kadooka (who also made the beautiful LUX TLR) managed to build one using some 3D printed parts and a Trinket Pro 3V microcontroller.

canon-p-ttl-meter-09

canon-p-ttl-meter-07

Here is a brief description of the project:

The goal of this project is to add a TSL235R light-to-frequency converter to the exposure chamber of a Canon P rangefinder to produce a TTL-off-the-frame exposure meter for convenient and accurate exposure metering in a wide range of lighting conditions #

canon-p-ttl-meter-03

The project uses a light-to-frequency converter to measure the light bouncing of the center of the frame inside the camera.

canon-p-ttl-meter-08

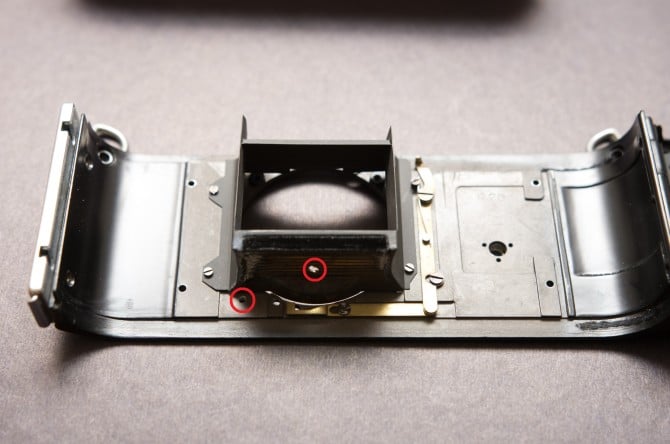

This involves taking the camera apart, drilling a few holes for the wires, and fitting the exposure chamber with a light sensor, so this is definitely not for the faint of heart.

canon-p-ttl-meter-10

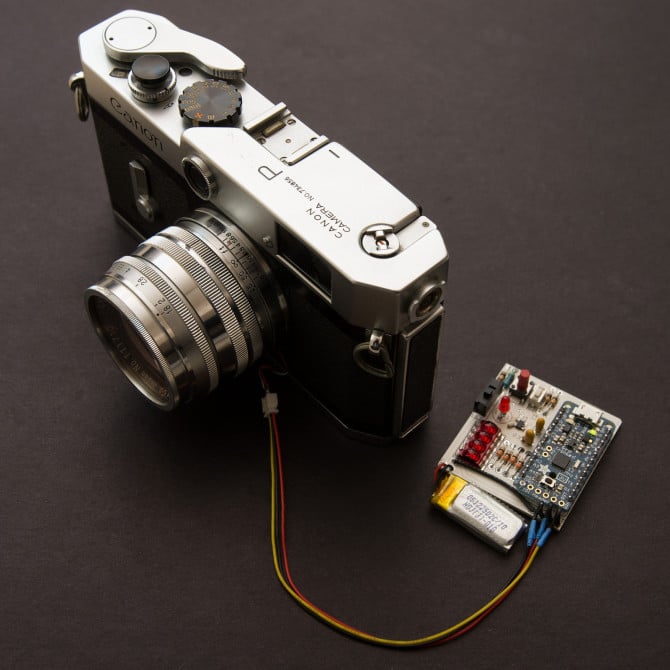

The back side however is quite elegant and is encased in a 3D printed shell that only displays old school 7 segment LEDs, which shows the exposure.

canon-p-ttl-meter-05

canon-p-ttl-meter-04

Here is a video showing the functionality of the unit:

If you are brave enough to try this yourself, there is a step by step tutorial over at hackaday.
