How to Make a DSLR Battery Run 4 Times Longer

If you ever do long time lapses you know how important battery life is. Nothing can spoil your day (or night) like a timelapse gone bad with a drained battery. This post by JP Danko (Check his awesome demo reel at the end of the post) shows a clever and relatively safe way to extend the battery life of a DSLR camera. Our usual disclaimer applies, you have to know what you are doing, or else the thing may explode. No kidding. If you are not sure, seek help with your local electronic club.

Shooting time lapse photography – or very long exposure astro photography, requires a lot more battery life than a single charge on the camera’s regular battery.

Aftermarket Nikon EN-EL3e Battery

We use Nikon D200 and D300s which use Nikon EN-EL3e lithium ion rechargeable batteries. However, there is no good commercial option to use a supplementary external battery.

The approach presented herein would also apply to other DSLR cameras – most of which use a similar battery.

It is possible to use an AC adapter (such as a Nikon EH-5a) to power the camera – but this option has several limitations. It requires either a long extension cord or an AC generator. But that sacrifices mobility. Alternatively, you could use a 12V power source, such as a car battery and a DC to AC inverter. But converting 12V DC (battery power source) to 120V AC (inverter) and back to 7.4V DC (camera adapter) incurs a lot of losses – it is much more efficient to eliminate any conversions and simply use the same voltage battery, with a larger capacity.

The problem is connecting a suitable external battery to the camera. To do this I chose to hack an inexpensive aftermarket EN-EL3e and connect it to a larger external battery. (You could also connect the camera end of an EH-5a adapter to a car battery – but a 12V DC to 7.4V DC adapter would still be necessary, and an EH-5a is pretty expensive to use just for the connecting socket.)

The Nikon EN-EL3e is rated at 7.4 volts and 1500 mAh. A Canon BP970 high capacity camcorder battery is also rated at 7.4 volts, but 7200 mAh. That means a single BP970 battery (theoretically) holds nearly five times the capacity of a EN-EL3e (1500 mAh x 5 = 7500 mAh). This same approach will work for a Canon 5d or any similar DSLR. The key thing is to match the specified voltage of the proposed external battery to your camera battery – but look for a high capacity model – the higher the milliampere-hour (mAh) rating, the higher the capacity, the longer it will run your camera.

For this project I used:

You will also need a few feet of high gauge wire (I used 28 gauge from an old infra red extender I had lying around) a soldering iron, hot glue gun, phillips screwdriver and a multimeter.

You should probably also know how to solder (its not hard – practice first if you are not sure) and a have a basic understanding of parallel versus series wiring.

The following is a step by step tutorial on two ways to connect a sacrificial EN-EL3e to an external high capacity battery. Taking apart a lithium ion battery is a potential hazard – all batteries warn you to not disassemble them – so do it at your own risk.

Note: Nikon and Canon camera batteries have a built in circuit board that tells the camera how much charge the battery has and controls charging. You cannot remove this circuitry from the sacrificial camera battery – or the camera will think the battery is dead and will not function. If you have a camera that doesn’t have a battery charge indicator, or one that can be turned off – you can simply remove the small circuit board in your sacrificial battery.

Carefully cut open your sacrificial battery along the seams – without damaging the innards.

Cutting Open Sacrificial DSLR Battery
Cutting Open Sacrificial DSLR Battery

Separate the two halves. Components of the battery may be taped to the plastic cover, so be gentle.

Inside of DSLR Camera Battery
Inside of DSLR Camera Battery

Identify the circuit board at the terminal end of the battery. Note the positive (B+) and negative (B-) inputs to the circuit board from the battery cells. The common connector (VC) is part of the safety and charging circuitry. The outputs from the circuit board centre (C), positive (P+) and negative (P-) are connected to the corresponding battery terminals.

Circuit Board Inside DSLR Camera Battery
Circuit Board Inside DSLR Camera Battery

Identify the lithium ion battery cells and carefully remove them from the circuit board.

Removing Lithium Ion Battery Cells from DSLR Battery
Removing Lithium Ion Battery Cells from DSLR Battery

Remove the circuit board from the terminals (Note: At this point I proceeded to remove the entire circuit board and connect the wires directly to the terminals. It wasn’t until I put the whole thing together and tested it that I realized that the circuit board has to stay. So I put it back).

Removal of Circuit Board From DSLR Camera Battery
Removal of Circuit Board From DSLR Camera Battery

Remove the terminals from the battery case (this is not necessary if you are good at soldering and are not worried about melting the case).

Removal of Terminals From DSLR Camera Battery
Removal of Terminals From DSLR Camera Battery

Solder new leads to the terminals.

New Leads Soldered to DSLR Camera Battery
New Leads Soldered to DSLR Camera Battery

At this point I put the battery back together without the circuit board. However, as noted – the camera didn’t work, so I had to splice the circuit board back in.

Interior of Sacrificial DSLR Battery
Interior of Sacrificial DSLR Battery With Circuit Boards Removed

Here the battery terminals center (C), positive (P+) and negative (P-) are connected to the corresponding terminals on the circuit board. The external battery leads are connected to the positive (B+) and negative (B-) circuit board inputs. The common safety/charge control (VC) is left unconnected.

New Leads Soldered to DSLR Camera Battery Circuit Board
New Leads Soldered to DSLR Camera Battery Circuit Board

Components held in place with hot glue (do not use silicone – it is corrosive and will kill the circuit).

Interior of Sacrificial DSLR Battery to be Re-Assembled
Interior of Sacrificial DSLR Battery to be Re-Assembled

Sacrificial battery re-assembled.

Sacrificial DSLR Battery Re-Assembled
Sacrificial DSLR Battery Re-Assembled

After finishing this battery, I decided to do another one with a slightly different approach. Instead of removing the lithium ion cells from the sacrificial battery, I left them in place and just connected the leads from the external battery directly to the terminals of the sacrificial battery in parallel (positive to positive, negative to negative). This keeps all of the original circuitry intact and also provides a 7.4V battery with a total of 8700 mAh (7200 mAh from the external battery plus 1500 mAh from the original cells). In hindsight, it was quite a bit easier.

External positive (+) and negative (-) leads from the external battery connected directly to the positive (+) and negative (-) terminals on the sacrificial battery.

New Leads Soldered to DSLR Camera Battery in Parallel
New Leads Soldered to DSLR Camera Battery in Parallel

To hold the external battery I used a compatible baseplate. This way the external battery can be easily removed from the system for charging.

High Capacity Camcorder Battery Base Plate
High Capacity Camcorder Battery Base Plate

Unscrew the baseplate and separate the two halves. Remove the connecting wires.

Interior of High Capacity Camcorder Battery Base Plate
Interior of High Capacity Camcorder Battery Base Plate

Connect the positive (+) and negative (-) leads from the external battery to the positive (+) and negative (-) terminals on the baseplate (you might want to remove the terminals first if you are worried about melting the baseplate components).

New Leads Soldered to Base Plate
New Leads Soldered to Base Plate

Re-assemble the baseplate.

Sacrificial DSLR Battery and Base Plate Re-Assembled
Sacrificial DSLR Battery and Base Plate Re-Assembled

Connect a charged external battery to the baseplate and check the voltage from the terminals on the sacrificial battery. Make sure you haven’t reversed the polarity along the way. In this case the external battery is reading 8.27V even though the battery is only rated at 7.4V (this is normal as a fully charged battery will have a slightly higher voltage than a depleted battery). If somewhere along the way the safety mechanism in the sacrificial battery’s circuit board has been tripped, you may get a reading of zero volts. However, the safety should re-set after a period of time. (This happened to me – I went out for dinner and when I got back it was working again.)

Checking Voltage of Connected High Capacity DSLR Battery
Checking Voltage of Connected High Capacity DSLR Battery

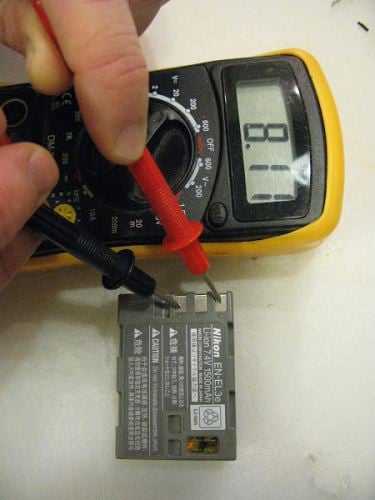

Fully charged genuine Nikon EN-EL3e battery reads 8.11V.

Voltage of Nikon DSLR Camera Battery
Voltage of Nikon DSLR Camera Battery

Place sacrificial battery into the camera.

Sacrificial DSLR Battery in Camera
Sacrificial DSLR Battery in Camera

Close the camera battery door. The wire I used is small enough, and there is enough play in the battery door that I can close it without having to modify the actual door. You might have to notch out the door if you can’t get it closed – the camera will sense that the door is open and won’t work unless the door is firmly closed.

Sacrificial DSLR Battery in Camera with Door Closed
Sacrificial DSLR Battery in Camera with Door Closed

Connect the external battery and turn the camera on. For some reason, the system with the sacrificial battery cells removes shows just shy of full power. The system with the external battery leads connected in parallel shows full power.

DSLR Powered by External High Capacity Battery
DSLR Camera Powered by External High Capacity Battery

Full power and ready to go with four to five times more battery capacity.

DSLR Camera at Full Power with High Capacity External Battery
DSLR Camera at Full Power with High Capacity External Battery

If a single 7200 mAh external battery isn’t enough for your requirements – you can also connect two together in parallel for 14400 mAh (or more – within reason).

Any questions – hit me in the comments. Cheers!

About The Author

JP Danko of blurMEDIA is commercial photographer based in Hamilton, Ontario, Canada. You can follow his work on Twitter @blurMEDIAStudio, Facebook and Google Plus or check out their portfolio on 500px. This was originally posted here.

JP is also the brains behind the very clever underwater triggering system we featured a while ago.

Awesome Demo Reel

As promised in the header here is the demo reel for JP. with pretty sweet timelapsing

UPDATE: as both Jason and Andrea noted on mail and comments, there is a similar Instructable which uses a sacrificial battery but plugs into an AC outlet here.

  • SuperK

    Hallo, I like your idea. But I know something. When you attach the wires inside the battery without removing the Lithium cells(your easy method), The small battery remains constantly in charging mode, and external 7200mah battery will keep on draining slowly. Less backup. So, better to use the empty case, which will be safest from any dangers that users have commented here.
    Another thing, many SLR models of Canon and Sony have a small opening doors, for the wires to come out. Yes, they make dummy battery pack with wires to be used in the similar way, that you have experimented here.

  • Paulo

    Just buy another battery. Get a battery grip, insert two batteries and it should be enough.

  • Arkady Tan

    Hi Danko, thanks for this tutorial!
    I’d tied it using an aftermarket Sony NP-F750 7.2v 4400mAh, the sacrificial enel3e had its cells removed.
    The NP-F750 was fully charged. However when plugged into the D700 it showed low batt and the single bar was blinking.

    Do we have to use a battery with 7.4v or is 7.2v sufficient?
    Thanks.

  • Arch Parsons

    Where can I get a battery plate?

  • mark

    Danko, have you ever converted a DSLR batterie ( from a D600 ) to be able to run off a 12 volt car batterie? I am thinking of doing extremely long time intervals and need solar power.

    mk

  • itschriswinter

    Hey! Great idea :) I came up with a safer and a little more elegant solution which will make your DSLR last 9 hours. I hope everyone can see this.

    I made a video about it at http://www.youtube.com/watch?v=4OXD3ENA_UA

  • Emaad

    I have tried a similar solution with my old point n shoot camera. I attached an external battery equal to wall charger current/ampere and added jeck of camera charging to that battery. My point n shoot performed very well and I got plenty of shots with it. But my camera died due to this setup after a year or so. There is one difference in your and my setup and that is circuit board of battery you are using. If this board can protect camera than it is good. Otherwise I wont use it with my DSLR.

  • http://www.mount-spokane-photography.com/ Mount Spokane Photography

    Right-On. This is a formula for a disaster. Sure, there may be 100 who do it successfully, or 1000. Its also possible that the 10th one will be seriously injured or burn down his home. There are too many red flags here to cover them all.

  • Pontiaku

    I wouldn’t suggest using the battery in parallel.
    If you can fit a UBEC inside the battery casing you can have a broad voltage input range.
