Canon EOS-1D X Mark II Price, Specs and Images Published Prematurely By Retailer

Feb 1, 2016 by Udi Tirosh Add Comment

  • Share
  • Tweet
  • Flipboard
  • WhatsApp

CanonEOS1DXMarkIIDSLRCameraSPECS9

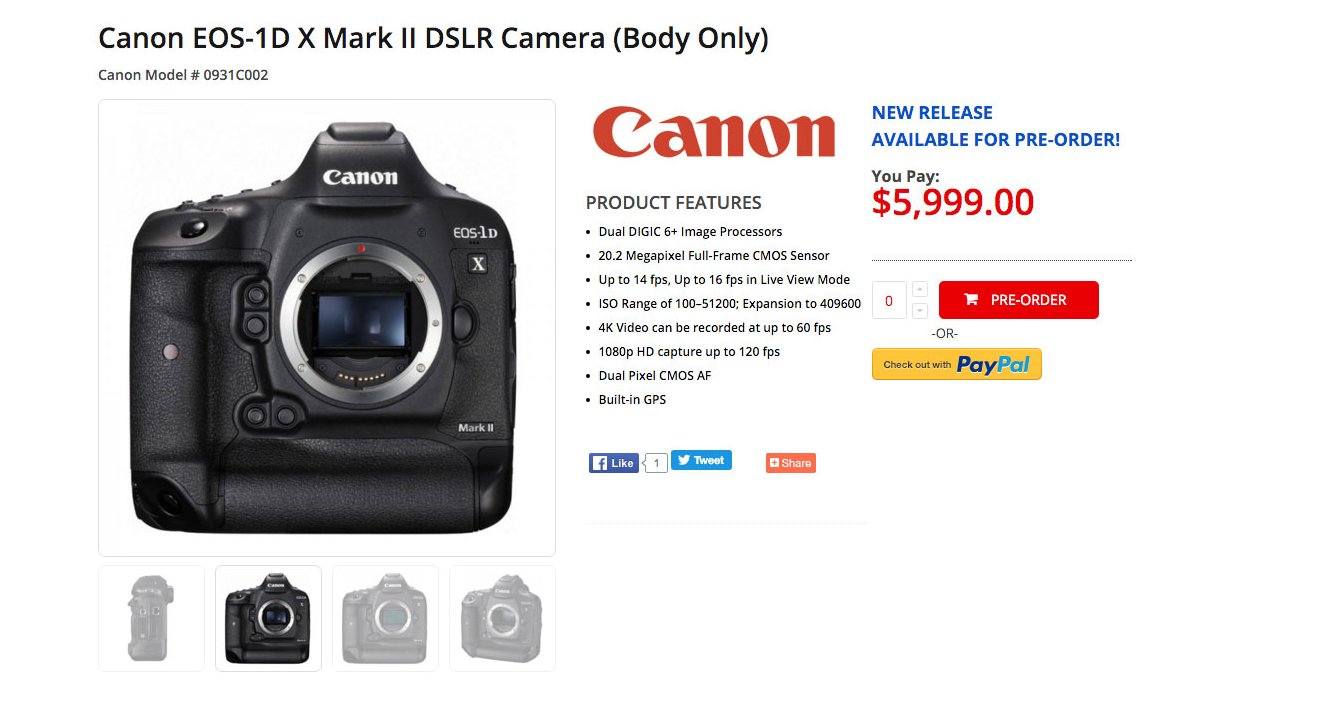

So, we know that the Canon EOS-1D X Mark II is due to be out this week, (we had leaks and rumors) but it is not out yet, at least not on Canon’s web site. Well, looks like someone hit the publish button a bit early and put it in the store, exposing the full prices, photos and specs of the 1DX mark II. Yes PROcam, I am taking about you.

All Things Photo Podcast spotted the premature outing and captured a bunch of screenshots. I would not be surprised if a press release from canon came out later today.

So, what so we have there?

CanonEOS1DXMarkIIDSLRCameraSPECS10

First is the price, and it is going to be $5,999, which is a bit lower than the usual $7,999 price point for 1Dxs when they are first broken into the market. This is a $2,000 change and not to be taken lightly, I wonder what it means on Canon’s strategy, maybe making the 1D line more accessible? maybe bringing in a bigger monster? time will tell.

Here are the leaked specs for the Canon EOS-1D X Mark II, page by page, followed by what seems to be the official images. What do you find most interesting.

CanonEOS1DXMarkIIDSLRCameraSPECS1 CanonEOS1DXMarkIIDSLRCameraSPECS2 CanonEOS1DXMarkIIDSLRCameraSPECS3 CanonEOS1DXMarkIIDSLRCameraSPECS4 CanonEOS1DXMarkIIDSLRCameraSPECS5 CanonEOS1DXMarkIIDSLRCameraSPECS6 CanonEOS1DXMarkIIDSLRCameraSPECS7 CanonEOS1DXMarkIIDSLRCameraSPECS8

idxii-usa_0003_04_rev1_usa_1 idxii-usa_0005_03_rev1_usa_2 idxii-usa_0007_02_down_rev1_usa_2

Here is a textual version if you prefer it:

Type

Type Digital, AF/AE single-lens reflex camera
Recording Media CF Card (Type I; compatible with UDMA 7 CF cards) and CFast™ Card (CFast 2.0™ supported)
Image Format Approx. 36mm x 24mm (35mm Full-frame)
Compatible Lenses Canon EF Lenses (excluding EF-S and EF-M lenses)
Lens Mount Canon EF Mount

Image Sensor

Type High-sensitivity, high-resolution, large single-plate full-frame CMOS sensor
Effective Pixels Approx. 20.2 megapixels
Total Pixels Approx. 21.5 megapixels
Aspect Ratio 3:2 (Horizontal: Vertical)
Color Filter System RGB primary color filters
Low Pass Filter Fixed position in front of the image sensor
Dust Deletion Feature
  • Self Cleaning Sensor Unit
  • Self-cleaning can be done automatically when the power is turned on/off.
  • During manual cleaning ([Clean now]), the data for light spot correction is also obtained.
  • Dust Delete Data acquisition and appending
  • The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
  • The dust coordinate data appended to the image is used by the EOS software to automatically erase the dust spots.
  • Manual cleaning

Recording System

Recording Format Design Rule for Camera File System 2.0 and EXIF 2.3
Image Format Still Image: JPEG, RAW (14 bit Canon Original), M-RAW, S-RAW, RAW+JPEG, M-RAW+JPEG, S-RAW+JPEG Video: MOV (4K Movie: Motion JPEG, Full HD Movie: MPEG4 AVC/H.264*; Audio: Linear PCM), MP4 (Movie: MPEG4 AVC/H.264*; Audio: AAC)
* Variable (averaged) bit rate
File Size
  • Large: Approx. 20.0 Megapixels (5472 x 3648)
  • M1: Approx. 12.7 Megapixels (4368 x 2912)
  • M2: Approx. 8.9 Megapixels (3648 x 2432)
  • Small: Approx. 5.0 Megapixels (2736 x 1824)
  • RAW: Approx. 20.0 Megapixels (5472 x 3648)
  • M-RAW: Approx. 11.2 Megapixels (4104 x 2736)
  • S-RAW: Approx. 5.0 Megapixels (2736 x 1824)

Exact file sizes depend on the subject, ISO speed, Picture Style, etc.

Recording Functions
  • Standard
    • Recorded to the selected card.
  • Auto switch card
    • When the current card becomes full, the camera switches to the other card automatically.
  • Record separately
    • The CF card and CFast™ card record the same image at a different image recording quality (L, M1, M2, S, RAW, M-RAW, S-RAW).
  • Record to multiple
    • Both the CF card and CFast™ card record the same image at the same image recording quality (Also applies to RAW+JPEG).
Backup Recording N/A
File Numbering The following three types of file numbers can be set:

  • Continuous numbering
    • The numbering of captured images continues even after you replace the card.
  • Auto reset
    • When you replace the card, the numbering will be reset to start from 0001. If the new card already contains images, the numbering will continue from the last recorded image in the card.
  • Manual reset
  • Resets the file number to 0001, and creates a new folder automatically.
RAW + JPEG Simultaneous Recording One of three types of RAW images and one of four types of JPEG images can be recorded together.
Color Space sRGB, Adobe RGB
Picture Style Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined 1–3*
* [Standard] is the default setting for [User Def. 1–3]

White Balance

Settings Auto (Ambience priority/White priority), Daylight, Shade, Cloudy*1, Tungsten Light, White Fluorescent Light, Flash, Custom (Custom WB) 1–5*2, Color Temperature, PC-1–5*3 (Personal WB) *1 Also effective in twilight and sunset.
*2 [Select image on card], [Record and register WB] and [Edit WB name] can be used.
*3 Up to five white balance data settings set with EOS Utility.
Auto White Balance Option between ambience priority and white priority settings
Color Temperature Compensation Blue/amber bias: ±9 levels
Magenta/green bias: ±9 levels Corrected in reference to the current WB mode’s color temperature.
Color Temperature Information Transmission Provided

Viewfinder

Type Eye-level pentaprism
Coverage Approx. 100% vertically and horizontally
Magnification Approx. 0.76x (-1m-1 with 50mm lens at infinity) / 35.1° angle of view
Eye Point Approx. 20mm (at -1m-1 from eyepiece lens center)
Dioptric Adjustment Correction –3.0 to +1.0 m–1 (diopter)
Focusing Screen Ec-C6 provided, can be changed to Ec-A, B or L
Mirror Quick-return half mirror
Viewfinder Information
  • AF area selection mode
  • AF point information
  • Area AF frame
  • Spot metering circle
  • Electronic level (dedicated indicator)*
  • Grid*
  • Shooting mode*
  • Metering mode*
  • White balance*
  • Drive mode*
  • AF operation*
  • Flicker detection*
  • Warning symbol
  • AF status indicator

* Asterisked items can be displayed or not with [Show/hide in viewfinder].

Depth Of Field Preview Provided

Autofocus

Type TTL secondary image-forming phase-difference detection system with AF-dedicated CMOS sensor
AF Points (Optical AF) Max. 61 points (Cross-type AF points: Max. 41 points)
61-point High Density Reticular AF II
(AF Points and AF Patterns)
Number of AF Points (Max.)
Dual Cross-type AF Points at f/2.8 and f/5.6 5
Cross-type AF Points at f/4.0+f/5.6 20
Cross-type AF Points at f/5.6 21
Horizontal-line Sensitive AF Points at f/5.6 20
Focusing at f/8 61
(Cross-type AF Point: 21)
The number of AF points, cross-type AF points and dual cross-type AF points vary depending on the lens used.
Focusing Modes
  • Autofocus
  • One-Shot AF
  • Predictive AI Servo AF (AI Servo AF III+)
  • Manual focus
AF Point Selection
  • Single-point Spot AF (Manual selection)
  • Single-point AF (Manual selection)
  • The checkmark cannot be removed from this option.
  • AF point expansion (Manual selection, 4 points: Up, down, left and right)
  • AF point expansion (Manual selection, surrounding 8 points)
  • Zone AF (Manual zone selection)
  • All AF points divided into nine focusing zones.
  • Large Zone AF (Manual zone selection)
  • All AF points divided into three focusing zones.
  • AF point Auto selection AF
AF Function Registration/Switching Customizable with Custom Controls
Selected AF Point Display Superimposed display
Active AF Point Indicator
  • Displayed in viewfinder area
  • Displayed outside viewfinder area
AF Assist Beam When an external EOS-dedicated Speedlite is attached to the camera, the following options are available:

  • Enable
  • Disable
  • Enable external flash only

Exposure Control

Metering Modes 216-zone (18 x 12) metering with approx. 360,000-pixel RGB+IR metering sensor. The following metering modes selectable:

  • Evaluative metering (linked to all AF points)
  • Partial metering (center, approx. 6.2% of viewfinder)
  • Spot metering (center, approx. 1.5% of viewfinder)
  • Center spot metering
  • AF point-linked spot metering (Custom Function)
      • Linkable to all AF points.
      • With automatic AF point selection, center spot metering will apply.
  • Multi-spot metering
      • Up to eight multi-spot meter readings can be taken.
  • Center-weighted average metering
    • The selectable metering modes can be restricted (Custom Function).
Metering Range EV 0–20 (at 73°F/23°C, ISO 100, with evaluative metering)
Exposure Control Systems
  • Program AE (Shiftable)
  • Shutter-priority AE (Safety shift possible)
  • Aperture-priority AE (Safety shift possible)
  • Manual exposure
  • The metering mode can be specified.
  • Bulb
  • Three custom shooting modes
ISO Speed Range Manual setting
Normal ISO Speeds ISO 100–51200 (in 1/3-stop increments)
Expanded ISO Speeds (Equivalent) L: 50, H1: 102400, H2: 204800, H3: 409600
For [Highlight tone priority], the settable ISO speed range will be ISO 200–51200.
ISO speed safety shift possible with a Custom Function.
All the expanded ISO speeds, even for movies, are only “equivalent speeds.” Auto setting
Shooting Mode ISO Settings
No Flash With Flash
P, Tv, Av, M ISO 100–51200*1 ISO 400 fixed*1, *2, *3
During Bulb shooting ISO 400 fixed*1
*1 It depends on [Minimum] and [Maximum] of [Auto range].
*2 If overexposure will result with fill flash, the minimum ISO speed will be set to ISO 100 (except in the M and bulb modes).
*3 In the P mode, using bounce flash with an external Speedlite will have the ISO speed set automatically within ISO 400–1600 to suit the brightness.
Exposure Compensation Manual: ±5 stops in 1/3- or 1/2-stop increments
AEB: ±3 stops in 1/3- or 1/2-stop increments
* Indicated up to ±3 stops on the LCD panel and in the viewfinder.
AE Lock
  • Auto AE lock
    • In the One-Shot AF mode with evaluative metering, AE lock takes effect when focus is achieved.
  • Manual AE lock
    • With AE lock button in P, Av, Tv and M modes. (AE lock is updated each time you press the button.)
    • Enabled in all metering modes.

Shutter

Type Vertical-travel, mechanical, focal-plane shutter with all speeds electronically-controlled
Shutter Speeds 1/8000 to 30 sec., bulb (Total shutter speed range. Available range varies by shooting mode.)
X-sync at 1/250 sec.
• Shutter speed’s control range can be set.
Shutter Release Soft-touch electromagnetic release
Self Timer 10-sec. delay, 2-sec. delay

External Speedlite

EOS Dedicated Speedlite E-TTL II autoflash with all EX Series Speedlites
Zooming to Match Focal Length Provided
Flash Exposure Compensation ±3 stops in 1/3- or 1/2-stop increments
FE Lock Provided
External Flash Settings
  • External flash control
  • Flash firing
  • E-TTL II Flash metering
  • Flash sync. Speed in Av mode
  • Flash mode
  • Radio wireless flash shooting
  • Optical wireless flash shooting
  • Zoom
  • Sync setting
  • Flash exposure compensation
  • FEB
  • Clear settings
  • Flash Custom Function setting
PC Terminal Provided
* No polarity.
* Sync speed: Since the flash duration of studio flash units vary, set a sync speed within 1/125 sec. to 1/30 sec. and check if the flash sync works.
* Both the accessory shoe (X-sync contact with maximum sync speed of 1/250 sec.) and the PC terminal can be used simultaneously for simultaneous flash firing.

Drive System

Drive Modes
  • Single shooting
  • High-speed continuous shooting
  • Low-speed continuous shooting
  • Silent single shooting
  • Silent high-speed continuous shooting
  • Silent low-speed continuous shooting
Continuous Shooting Speed*
  • Viewfinder shooting
    • High-speed: Maximum 14 shots/sec.
    • Low-speed: Maximum 13 shots/sec.
    • Silent high-speed: Maximum 5 shots/sec.
    • Silent low-speed: Maximum 4 shots/sec.
  • Live View shooting
    • High-speed: Maximum 16 shots/sec.
    • Low-speed: Maximum 13 shots/sec.
    • Silent high-speed: Maximum 5 shots/sec.
    • Silent low-speed: Maximum 4 shots/sec.

* Continuous shooting speed may vary depending on the shutter speed, the aperture, the lens being used, the battery charge and various camera settings.

Maximum Burst The maximum burst during continuous shooting is as follows:
Image Recording Quality CF Card CFast™ Card
Standard UDMA7 CFast 2.0™
L 140 Full Full
RAW 59 73 170
RAW+L 48 54 81
With “Full”, continuous shooting is possible until the card becomes full.

Live View Functions

Shooting Modes Still photo and video recording
Focusing
  • Dual Pixel CMOS AF
  • Dual Pixel CMOS AF is possible with all EF lenses.
  • Manual focus
  • Magnify the image by 5x or 10x and focus manually.
Metering Modes
  • Evaluative metering (linked to all AF points)
  • Partial metering (approx. 6.5% of viewfinder)
  • Spot metering (approx. 2.8% of viewfinder)
  • Center-weighted average metering

AE lock possible. The active metering timer can be changed.

Metering Range EV 0–20 (at 73°F/23°C, ISO 100, with evaluative metering)
Grid Display
  • Off
  • 3×3
  • 6×4
  • 3×3+diag
Exposure Simulation Same as with viewfinder shooting
Silent Shooting Provided

Video Shooting

File Format MOV (4K Movie: Motion JPEG, Full HD Movie: MPEG4 AVC/H.264; Audio: Linear PCM), MP4 (Movie: MPEG4 AVC/H.264; Audio: AAC)
Internal monaural microphone
External stereo microphone jack available
Recording Sizes 4096 x 2160 (4K)
1920 x 1080 (Full HD)
Frame Rates [4096 x 2160]: 59.94fps / 50.00fps / 29.97 fps/ 25.00fps / 24.00fps / 23.98fps
[1920 x 1080]: 119.9fps / 100.0fps / 59.94fps / 50.00fps / 29.97fps / 25.00fps / 24.00fps / 23.98fps
Focusing
  • Dual Pixel CMOS AF
  • Manual focus

* Magnify the image by 5x or 10x and focus manually (not possible during movie shooting).

Exposure Control
Shooting Mode Exposure Control Shutter Speed (sec.) Aperture
Auto Setting Manual Setting Auto Setting Manual Setting
P, bulb Program AE for movie shooting Yes Yes
Tv Movie shutter-priority AE Yes Yes
Av Movie aperture-priority AE Yes Yes
M Movie manual exposure Yes Yes
Exposure Compensation Up to ±3 stops in 1/3- or 1/2-stop increments
* If AE Microadjustment is performed, the settable exposure compensation amount will decrease by the amount of the AE Microadjustment. For example, if you set the AE Microadjustment to +1 stop, the exposure compensation amount will be limited to a maximum +2 stops on the positive side.
Continuous Shooting Time

MOV Format

Movie-recording Size Total Recording Time (Approx.) Movie Bit Rate /
File Size (Approx.)
4GB 16GB 64GB
4K
(4096 x 2160)
59.94 fps, 50.00 fps Motion JPEG 39 sec. 2 min. 10 min. 800 Mbps
5733 MB/min.
29.97 fps, 25.00 fps, 24.00 fps, 23.98 fps Motion JPEG 1 min. 4 min. 17 min. 500 Mbps
3587 MB/min.
Full HD
(1920 x 1080)
119.9 fps, 100.0 fps ALL-I 1 min. 5 min. 23 min. 360 Mbps
2585 MB/min.
59.94 fps, 50.00 fps ALL-I 2 min. 11 min. 47 min. 180 Mbps
1298 MB/min.
IPB 8 min. 34 min. 2 hr. 18 min. 60 Mbps
440 MB/min.
29.97 fps, 25.00 fps, 24.00 fps, 23.98 fps ALL-I 5 min. 23 min. 1 hr. 33 min. 90 Mbps
654 MB/min.
IPB 16 min. 1 hr. 7 min. 4 hr. 30 min. 30 Mbps
225 MB/min.

MP4 Format

Movie-recording Size Total Recording Time (Approx.) Movie Bit Rate /
File Size (Approx.)
64GB 128GB 256GB
Full HD
(1920 x 1080)
59.94 fps, 50.00 fps IPB 8 min. 35 min. 2 hr. 21 min. 60 Mbps
431 MB/min.
29.97 fps, 25.00 fps, 24.00 fps, 23.98 fps IPB 17 min. 1 hr. 10 min. 4 hr. 41 min. 30 Mbps
216 MB/min.
29.97 fps, 25.00 fps IPB (Light) 43 min. 2 hr. 53 min. 11 hr. 35 min. 12 Mbps
87 MB/min.

LCD Monitor

Type TFT color, liquid-crystal monitor
Monitor Size 3.2-inches
Pixels Approx. 1.62 million dots
Coverage Approx. 100% vertically and horizontally
Viewing angle: Approx. 170° vertically and horizontally
Brightness Control 7 levels provided
Interface Languages 25 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukraine, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Japanese)

Playback

Display Format
Single Image Display
  • No information display
  • Basic information display
  • Detailed shooting information display
    • Basic shooting information
    • Lens information and RGB histogram
    • White balance
    • Picture Style
    • Color space and noise reduction
    • Lens optical correction
    • GPS information
Index Display
  • 4-image index
  • 9-image index
  • 36-image index
  • 100-image index
Highlight Alert On the single-image display, highlight areas without any image information will blink.

[PROcam via all things photo]



FIND THIS INTERESTING? SHARE IT WITH YOUR FRIENDS!

  • Share
  • Tweet
  • Flipboard
  • WhatsApp

Related posts:

EOS 5D Mark V and EOS R Mark II added to Canon’s internal roadmap, rumours suggest Comparing the Canon EOS R, EOS RP, EOS R5 and EOS R6 head-to-head for portraits Canon Australia closes online store to help boost local retailer sales Testing the ISO of Canon EOS R5 and R6 vs 1DX Mark III and 5D Mark IV

Filed Under: Gear Tagged With: Canon, Canon EOS 1D X Mark II, DSLR cameras, Leaked

Udi Tirosh: from diyphotography.net

About Udi Tirosh

Udi Tirosh is an entrepreneur, photography inventor, journalist, educator, and writer based in Israel. With over 25 years of experience in the photo-video industry, Udi has built and sold several photography-related brands. Udi has a double degree in mass media communications and computer science.

« Professional Photographers Upset David Beckham’s Son Photographed Commercial Campaign
Fashion Industry Turning To Solutions That Remove The Photographer From The Process »

Submit A Story

Get our FREE Lighting Book

DIYP lighting book cover

* download requires newsletter signup

Recent Comments

Free Resources

Advanced lighting book

Learn photography

Recent Posts

  • This year’s Nature TTL POTY winner puts global warming right in our faces
  • TTArtisan announces super-low-budget 500mm f/6.3 super telephoto lens
  • NASA reveals five photos of space objects invisible to human eye
  • Tamron’s 17-50mm f/4 Di III VXD lens ships in October
  • Facebook now lets you (legally) have multiple profiles

Udi Tirosh: from diyphotography.netUdi Tirosh is an entrepreneur, photography inventor, journalist, educator, and writer based in Israel. With over 25 years of experience in the photo-video industry, Udi has built and sold several photography-related brands. Udi has a double degree in mass media communications and computer science.

Alex Baker: from diyphotography.netAlex Baker is a portrait and lifestyle driven photographer based in Valencia, Spain. She works on a range of projects from commercial to fine art and has had work featured in publications such as The Daily Mail, Conde Nast Traveller and El Mundo, and has exhibited work across Europe

David Williams: from diyphotography.netDave Williams is an accomplished travel photographer, writer, and best-selling author from the UK. He is also a photography educator and published Aurora expert. Dave has traveled extensively in recent years, capturing stunning images from around the world in a modified van. His work has been featured in various publications and he has worked with notable brands such as Skoda, EE, Boeing, Huawei, Microsoft, BMW, Conde Nast, Electronic Arts, Discovery, BBC, The Guardian, ESPN, NBC, and many others.

John Aldred: from diyphotography.netJohn Aldred is a photographer with over 20 years of experience in the portrait and commercial worlds. He is based in Scotland and has been an early adopter - and occasional beta tester - of almost every digital imaging technology in that time. As well as his creative visual work, John uses 3D printing, electronics and programming to create his own photography and filmmaking tools and consults for a number of brands across the industry.

Dunja Djudjic: from diyphotography.netDunja Djudjic is a multi-talented artist based in Novi Sad, Serbia. With 15 years of experience as a photographer, she specializes in capturing the beauty of nature, travel, and fine art. In addition to her photography, Dunja also expresses her creativity through writing, embroidery, and jewelry making.

Copyright © DIYPhotography 2006 - 2023 | About | Contact | Advertise | Write for DIYP | Full Disclosure | Privacy Policy
