After the impressive table top dolly design, Martin Taylor shows how to build a Slider Dolly.

As more and more people get into video the number one accessory they seem to want after a shoulder rig is a slider. A slider allows short trucking camera movements. Commercial sliders run the gamut in price (from several hundred to several thousand) and design. A slider usually has a captive body that you mount a tripod head to. The body runs on a track on mechanical bearings or some low friction material. The tracks seem to run anywhere from 2 to 5 feet and can mount on a tripod themselves or some have feet that allow you to lay the slider on the ground for a low profile shot, or rest it on a convenient table or counter top.

Sliders are popular because camera motions are shorthand for high production values but, because a slider unit is self-contained, setup times are significantly less than a full size camera dolly on rails. Not to be out done I wanted to be able to achieve these kind of shots sometimes but my need wasn’t severe enough to justify commercial prices so I went into CAD and then to my toolbox to come up with the following.

This is less a slider than a scaled down version of a floor mounted dolly and rails system. The truck isn’t captive so, unlike a slider, you can lift it off the rails. This makes it easy to transport and also allows you to create many different rails configurations for different situations that can utilize a single truck; the following tutorial offers one rail design but you can easily make longer rail systems that this truck can run on.

Build a DIY Mini-Rail Dolly

My design requirements were as follows:

  • to be cheap
  • to accomplish perfectly smooth camera movements silently
  • to be easy to construct with the minimum of tools
  • to be light and compact enough to be transported in my tiny car without having to put the roof down (I have a MX5 / Miata)
  • to be strong and reliable.

Total cost of materials was $50 and consists of the following:

  • PVC & Lumber (actual lumber dimensions are smaller than quoted eg. what is called 1″ thick actually measures 0.75″):
    • 6″x1″ plank ($5)
    • 2″x1″ plank ($1)
    • 1.5″ (inside measurement) PVC pipe length ($5)
  • Hardware:
    • 8 x Rollerblade wheels with bearings and spaces ($25 from Amazon)
    • 4 x 5/16″, 3″ long screws for axles
    • 4 x 5/16″, 1.5″ long screws for bottom guide wheels
    • 8 x 5/16″ washers
    • 8 x 5/16″ T-nuts for wheels
    • 3/8″ and 1/4″ T-nuts for tripod head mount
    • 3/8″ and 1/4″ screws for tripod head mount
    • Box of 1.25″ wood screws (for track construction)
  • Consumables:
    • Wood glue
    • Nails
    • Paint or stain for finishing
    • Wood filler
    • Sanding sheets

Tools required:

  • Miter saw (miter box optional) or power saw that can accomplish same
  • Drill & bits (preferably powered)
  • Hammer
  • Screw driver
  • Pencil & square edge to measure and mark cuts
  • Sanding pad or electrical sander that can accomplish the same.
  • Hacksaw and file or Dremel

Walk Through:

Construction of the truck:

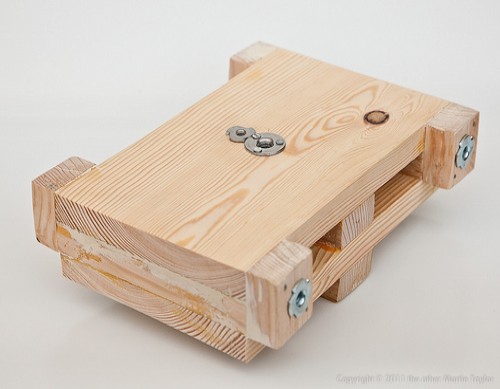

Cut 2 x 9″ lengths from your 6×1″ board.

Cut 4 x 5.5″ lengths from your 2×1″ lumber

Glue and pin together as shown in the illustration

Clamp and set aside.

Build a DIY Mini-Rail Dolly

Cut 4 x 1.5″ lengths from your 2×1″ lumber to use as the axle blocks

Glue and pin to the truck body as shown in the illustration

Build a DIY Mini-Rail Dolly

When solid drill 3″ long holes in the center of each axle block – they should be deep enough that they can accept the remaining threads of the axle bolts when they have the skate wheels in place.

Widen the entrance of these holes to accept the t-nuts

Press or hammer t-nuts into place for the axles.

Build a DIY Mini-Rail Dolly

Mount the 4 main wheels: each has a long bolt, drop on the wheel, then a washer then screw into place – the wheel should be able to spin freely.

Using a pipe as your guide estimate where the guide wheels need to be on the bottom of the truck body so that the main wheels run on the top of the tube and the guide wheels keep the truck running true.

As you did for the main axles, drill holes for the shorter guide wheel axles, fit t-nuts and mount the guide wheels in place.

Find and mark the center of the top of the truck body. This is where you will mount a t-nut of the correct thread (1/4″ or 3/8″) that your tripod head will mount to. You can see that I put both sizes of t-nuts on my truck so I can mount any tripod head on it. You can do the same or chose the thread you most commonly use. You can also use the smaller 1/4″ screw with an adapter to scale it up to 3/8″ when required. Mount the t-nut(s) as required.

Take a 1/4″ or 3/8″ bolt appropriate for the t-nut(s) you just fitted and the tripod head you want to use. With a Dremel cut off wheel remove the bolt head. File your cut smooth so that it will easily mount in your t-nut and the base of your tripod head. You can cut a slot in one end of the screw to allow a flat screw driver to get purchase of your headless bolt if required.

Build a DIY Mini-Rail Dolly

Construction of the rails:

Take your PVC pipe and cut it exactly in the middle to make two identical rails.

Cut 3 x 10.75″ sleepers from your 6×1″ board.

Cut 4 x 10.75″ sleepers from your 2×1″ board.

Build a DIY Mini-Rail Dolly

Use your completed truck to accurately space your rails. It is important that your rails the right distance apart for your wheels and absolutely parallel. Using your assembled truck to space the rails will ensure you get this bit right.

Mount the center 6″ wide sleeper to your rails first. At the center of both rails, using the truck to accurately space the rails, drill a pilot hole and screw the sleeper to both rails – use 2 screws each side. A wood screw should cut into the PVC pipe as well through the wood with ease. It helps to have a extra pair of hands when you’re trying to hold the rails the right distance apart and drill and mount the sleepers at the same time.

Mount the two other 6″ wide sleepers about a third of the way down each rail in the same way, again using the truck to ensure the rails remain the right distance apart, screw the sleepers into place.

Build a DIY Mini-Rail Dolly

Mount 2 of your narrow sleepers between the 3 wide sleepers – these only need to be mounted with 1 screw per side.

Flip the rails over and mount the 2 remaining narrow sleepers at the very end of the top of your rails. These sleepers not only add strength and rigidity to your rail component but they act as a buffer so that your truck with your precious camera on it won’t fall off the ends of the rails and crash to the floor

Build a DIY Mini-Rail Dolly

Testing and finishing:

Mount a tripod head to your truck with the headless bolt you made.

Put a camera on the tripod head.

Put your rails on the floor with the sleepers on the bottom

Put the truck on the rails and check that the truck runs freely and smoothly on the rails.

If everything works well you can take the tripod head and wheels off your truck and sand and paint it if you want. Everyone seems to like the truck better when it’s painted black even though it has little real practical purpose.

You’re done and ready to roll!

Build a DIY Mini-Rail Dolly

Build a DIY Mini-Rail Dolly

DIY Mini-Skate Wheel Dolly: Bird's Eye View>

DIY Mini-Skate Wheel Dolly: Rails

If you’re a SketchUp geek you can download and explore my construction model for this design.

Usage Notes

I couldn’t find any real instructions on using a slider so here is what I learned after using my home-brew device once (there should be more authoritative voices than mine out there but I can’t find them):

  • Have a planned start and stop point for your move and pre-focus accordingly.
  • If you’re rolling into a focus point pre-focus with your camera in the final location and use a finger to mark where that position is on the rails – your finger makers a pretty soft stop point.
  • Don’t use the end buffer of the rails as your stop point – the way the camera stops is too sudden.
  • Give yourself 5 seconds with the camera still at both the start and end points of your move to give yourself more options when you come to edit.
  • Start the movement slowly and end slowly – avoid sudden acceleration and braking.
  • Don’t move the camera too quickly – you want to induce a feeling of sophistication not motion sickness.
  • It’s really hard to move the camera consistently at a very slow speed.
  • Pulling focus on a DSLR while rolling is very hard – avoid if at all possible.
  • When you’re trying to get a smooth move you can hold the sled or head but it seemed to work best for me if I held the camera itself.
  • Objects must be close or mid-distance to work effectively with small movements of 5ft and less
  • Keep your tracks, horizon and horizontal lines level – shim the tracks to achieve this and make sure they don’t rock part way through the move as the center of gravity changes.

Again, these are just my personal findings. If you know better I’d love to hear from you.

Ed note: This got me thinking that you can also use this as a rail for inexpensive time lapse movies, using a BBQ rotisserie or a Kitchen Timer as a pulling engine.
